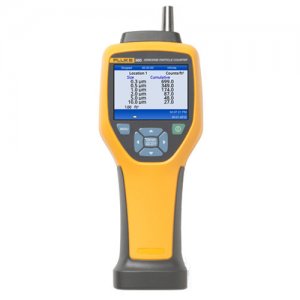

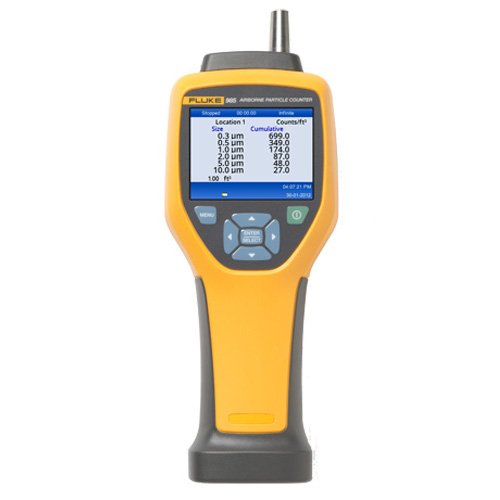

Fluke 985 Six channel Particle Counter, 0.3 μm to 10 μm Range

Category: Air Quality Testers

The Fluke 985 particle counter is an essential tool in the facility maintenance, HVAC and IAQ professional’s toolbox. From filter testing to indoor air quality investigations, the particle counter equips the user with valuable data concerning the concentration and source of particulates in the tested environment. The new Fluke 985 Particle Counter is ideal for troubleshooting and monitoring indoor air quality issues and verifying HVAC filter performance and critical locations for ISO Class 5–9 certification. With the ultra-light weight ergonomic design, easy to view color screen with intuitive icons, on-screen trend graphs for easy and quick analysis, the Fluke 985 is a must for any maintenance, HVAC and IAQ professional.

Fluke 985 Particle Counter
Six size channels 0.3 μm, 0.5 μm, 1.0 μm, 2.0 μm, 5.0 μm, 10.0 μm
Flow rate 0.1 cfm (2.83 L/min)
Light source 775 nm to 795 nm, 90mW class 3B laser
Count modes Raw counts, #/m3, #/ft3, #/liter in Cumulative or Differential mode
Counting efficiency 50 % @ 0.3 μm; 100 % for particles > 0.45 μm (per ISO 21501)
Zero count 1 count/5 minute (JIS B9921)
Concentration limits 10 % at 4,000,000 particles per ft3 (per ISO 21501)
Data storage 10,000 records (rotating buffer)
Alarms User selected particle channels and limits
Display QVGA color with backlight
Delay time 0 to 24 hours
Sample inlet Isokinetic probe
Security Administrator password controlled (optional)
Communication mode USB or Ethernet
Dimensions (L x W x D) 27.2 cm x 9.9 cm x 5.3 cm (10.7 in x 3.9 in x 2.1 in)
Weight 0.68 kg (1.5 lb)
Power adapter 100 V ac to 240 V ac, 12 V dc, 2.5 A
Rechargeable battery Li-ion 7.4 V 2600 mAh
Battery duration/charge time 10 hours typical use (5 hours continuous sampling)/3.5 hours
Calibration PSL particles in air (NIST traceable)
Operating environment 50 °F to 104 °F (10 °C to 40 °C)/< 95 % non-condensing relative humidity
Storage environment 14 °F to 122 °F (-10 °C to 50 °C)/Up to 98 % non-condensing relative humidity
