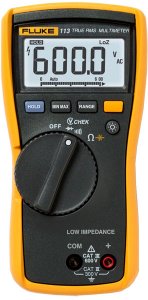

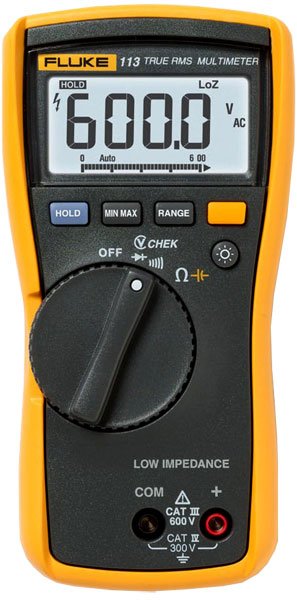

| Fluke 113 Specifications |
| Function |
Range |
Resolution |
Accuracy |
Volts |
Measurement |
6.000 V
60.00 V
600.0 V |
0.001 V
0.01 V
0.1 V |
DC, 45 to 500 Hz: 2.0% + 3
500 Hz to 1 kHz: 4.0% + 3 |
Input Impedance
(Nominal) |
~3kW<300 pF |
Common Mode Rejection Ratio
(1 kΩ Unbalanced) |
60 dB at DC,
50 or 60 Hz |
Diodes |
Measurement |
Range |
Resolution |
Accuracy |
| 2.000 V |
0.001 V |
2.0% + 3 |
Open Circuit
Test Voltage |
< 2.7 V DC |
| Full Scale Voltage |
< 0.7 V DC |
| Short Circuit Current |
< 350 µA |
Sound |
Measurement |
Range |
Resolution |
Accuracy |
| - |
- |
Beeper on < 20 Ω, off > 250 Ω;
Detects open or shorts of 500 µs or longer |
OHMs |
Measurement |
Range |
Resolution |
Accuracy |
600.0 Ω
6.000 kΩ
60.00 kΩ |
0.1Ω
0.01 kΩ
0.001 kΩ |
0.9% + 2
0.9% + 1
0.9% + 1 |
Open Circuit
Test Voltage |
< 2.7 V DC |
| Full Scale Voltage |
2.000 V DC |
| Short Circuit Current |
< 1.0 mA |
Capacitors |
Measurement |
Range |
Resolution |
Accuracy |
1000 nF
10.00 µF
100.0 µF
9999 µF |
1 nF
0.01 µF
0.1 µF
1 µF |
1.9% + 2
1.9% + 2
1.9% + 2
100 µF - 1000 µF: 1.9% + 2; >1000 µF: 5% + 20 |
| Additional note for all functions: |
- All VChek voltage ranges are specified from 60 counts to 100% of range. Because inputs below 60 counts are not specified, it is possible and normal for this and other true-rms meters to display non-zero readings when the test leads are disconnected from a circuit or are shorted together
- Crest factor of ≤3 at 4000 counts, decreasing linearly to 1.5 at full scale
- After measuring voltage, a wait time of 1 minute is required to maintain accuracy, ohms, capacitance, diode test, and continuity
|
| Specifications |
Details |
| Accuracy |
0.5% |
| Features |
True RMS |
Yes |
| Capacitance |
Yes |
| Display Backlight |
Yes |
| MIN/MAX/AVG |
Yes |
| Probe Holders |
Yes |
Maximum Voltage between any
terminal and earth ground |
600B |
| Temperature coefficient |
0.1 x (specified accuracy)/°C (< 18°C or > 28°C) |
| Temperature |
Operating |
-10°C to 50°C (14°F to 122°F) |
| Storage |
-40°C to 60°C (-22°F to 140°F) |
| Altitude |
Operating |
2,000 m |
| Storage |
10,000 m |
| Relative Humidity |
95% at 30°C |
| 75% at 40°C |
| 45% at 50°C |
| Shock |
1 Meter drop per IEC 61010-1-2001 |
| Vibration |
Per MIL-PRF-28800 for Class 2 instrument |
| Safety |
Complies with ANSI/ISA 82.02.01 (61010-1), 2004, CAN/CCSA-C22.2 No. 61010-1-04, UL 61010-1 (2004) and IEC/EN 61010-1 2nd edition for measurement Category III, 600 V, Pollution degree 2, EMC EN61326-1 |
| EMI Regulation |
Complies with FCC Part 15, class B |
| Display |
3 3/4-digits, 6000 counts, updates 4/sec |
| Battery |
Type |
9 Volt Alkaline, ANSU 1604A/IEC 6F22 |
| Cover Type |
Battery Door (for quick battery changes) |
| Life |
300 hour typical, without Backlight |
| Physical Dimensions |
Size |
6.58" x 3.35" x 1.81" inches (167.1mm x 85.1mm x 46mm) |
| Weight |
404 grams (13.0 oz) |
