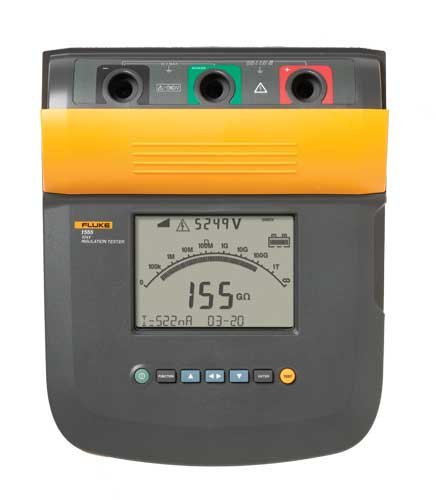

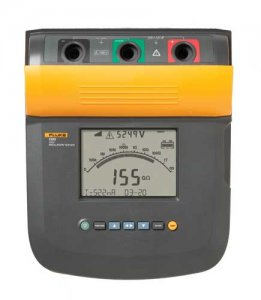

Fluke insulation testers can now conduct the entire range of test voltages specified in IEEE 43-2000 with a best in class, 3 year warranty and CAT IV 600 V safety rating. With measurement storage and PC interface, the 1550C and 1550C are perfect tools for pre-ventative or predictive maintenance programs designed to identify potential equipment failures before they occur.
| Specification Fluke 1550C | |||
| Insulation resistance | Test voltage (dc) | Range | Accuracy (± reading) |
| 250 V | < 200 kΩ 200 kΩ to 5 GΩ 5 GΩ to 50 GΩ >50 GΩ |
unspecified 5 % 20 % unspecified |
|
| 500 V | < 200 kΩ 200 kΩ to 10 GΩ 10 GΩ to 100 GΩ >100 GΩ |
unspecified 5 % 20 % unspecified |
|
| 1000 V | < 200 kΩ 200 kΩ to 20 GΩ 20 GΩ to 200 GΩ >200 GΩ |
unspecified 5 % 20 % unspecified |
|
| 2500 V | < 200 kΩ 200 kΩ to 50 GΩ 50 GΩ to 500 GΩ >500 GΩ |
unspecified 5 % 20 % unspecified |
|
| 5000 V | < 200 kΩ 200 kΩ to 100 GΩ 100 GΩ to 1 TΩ >1 TΩ |
unspecified 5 % 20 % unspecified |
|
| Bar graph range | 0 to 1 TΩ | ||
| Insulation test voltage accuracy |
-0 %, +10 % at 1 mA load current | ||
| Induced ac mains current rejection |
2 mA maximum | ||
| Charging rate for capacitive load |
5 seconds per μF | ||
| Discharge rate for capacitive load |
1.5 s/μF | ||
| Range | Accuracy | ||
| Leakage current | 1 nA to 2 mA | ± (5 % + 2 nA) | |
| Capacitance | 0.01 uF to 15.00 μF | ± (15 % rdg + 0.03 μF) | |
| Range | Resolution | ||
| Timer | 0 to 99 minutes | Setting: 1 minute. Indication: 1 second | |
| Warning range | Voltage accuracy | ||
| Live circuit warning | 30 V to 660 V ac/dc, 50/60 Hz |
± (15 % + 2 V) | |
| Display | 75 mm x 105 mm | ||
| Power | 12 V lead-acid rechargeable battery, Yuasa NP2.8-12 | ||
| Charger Input (AC) | 85 V ac 50/60 Hz 20 VA | ||
| Dimensions | 269 mm x 277 mm x 160 mm (10.6 in x 10.9 in x 6.3 in) | ||
| Weight | 3.7 kg (8.2 lb) | ||
| Temperature (operating) | -20 ºC to 50 ºC (-4 ºF to 122 ºF) | ||
| Temperature (storage) | -20 ºC to 65 ºC (-4 ºF to 149 ºF) | ||
| Humidity | 80 % to 31 ºC decreasing linearly to 50 % at 50 ºC | ||
| Altitude | 2000 m | ||
| Enclosure sealing | IP40 | ||
| Input overload protection | 1000 V ac | ||
| Electromagnetic compatibility | EN 61326 | ||
