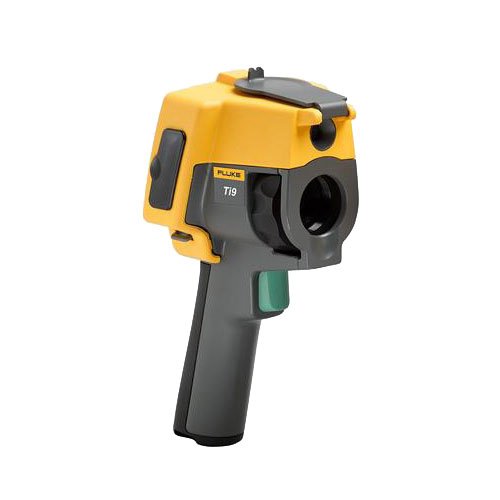

| Ti9 Specifications |
| Temperature |
Measurement range
(not calibrated below -10°C) |
-20°C to +250°C (-4°F to +482°F) |
| Measurement accuracy |
± 5°C or 5% (at 25°C nominal, whichever is greater) |
| On-screen emissivity correction |
In software only |
On-screen reflected background
temperature compensation |
In software only |
| Imaging performance |
| Image capture frequency |
9Hz refresh rate |
| Detector type |
160 X 120 Focal Plane Array, uncooled microbolometer |
| Thermal sensitivity (NETD) |
≤ 0.20°C at 30°C target temp. (200 mK) |
| Infrared field of view |
23° x 17° |
| Spatial resolution (IFOV) |
2.5 mRad |
| Minimum infrared focus distance |
15 cm (approx. 6 in) |
| Focus mechanism |
Manual, one-handed Smart Focus capability |
| Image presentation |
| Palettes |
Standard |
Ironbow, Blue-Red, High Contrast, Grayscale |
| Level and span |
Smooth auto-scaling and manual scaling of level and span |
| Fast auto toggle between manual and auto modes |
Yes |
Fast auto-rescale
in manual mode |
Yes |
Minimum span
(in manual mode) |
5°C (9°F) |
| Minimum span (in auto mode) |
10°C (18°F) |
| Full screen infrared |
100% IR displayed on LCD |
| Image capture and data storage |
| Image capture, review, save mechanism |
One-handed image capture, review, and save capability |
| Storage medium |
SD Memory Card (2 GB memory card will store at least 1200 fully radiometric (.is2) IR and linked visual images each with 60 seconds voice annotations (when available), or 3000 basic bitmap (.bmp) images transferrable to PC via included multi-format USB card reader |
| File formats |
Non-radiometric (.bmp) or fully-radiometric (.is2) |
| No analysis software required for non-radiometic bitmap (.bmp) files |
Export file formats
w/SmartView software |
BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF |
| Memory review |
Sequential image navigation and review |
| General specifications |
| Operating temperature |
-10°C to +50°C (14°F to 122°F) |
| Storage temperature |
-20°C to +50°C (-4°F to 122°F) without batteries |
| Relative humidity |
10% to 95% non-condensing |
| Display |
9.1 cm (3.7 in) diagonal landscape color VGA (640 x 480) LCD with backlight and clear protective cover |
| Controls and adjustments |
User selectable temperature scale (°C/°F)
Language selection
Time/Date set
User selectable backlight: "Full Bright" or "Auto" |
| Software |
SmartView full analysis and reporting software included |
| Batteries |
Internal rechargeable battery pack |
| Battery life |
Three to four hours continuous use (assumes 50% brightness of LCD) |
| AC battery charging |
AC adapter/charger (110 V ac to 220 V ac, 50/60 Hz) (included), charges battery while imager is operating or turned off, ac mains adapters included |
| Power saving |
Sleep mode activated after five minutes of inactivity, automatic power off after 30 minutes of inactivity |
| Safety standards |
CSA (US and CAN): C22.2 No. 61010-1-04, UL: UL STD 61010-1 (2nd Edition), ISA: 82.02.01 |
| Electromagnetic compatibility |
Meets all applicable requirements in EN61326-1:2006 |
| C Tick |
IEC/EN 61326-1 |
| US FCC |
CFR 47, Part 15 Class B |
| Vibration |
0.03 g2/Hz (3.8 grms), IEC 68-2-6 |
| Shock |
25 g, IEC 68-2-29 |
| Drop |
2 meter (6.5 feet) with standard lens |
| Size (H x W x L) |
10.5 in x 5.0 in x 6.0 in (26.7 cm x 12.7 cm x 15.2 cm) |
| Weight (battery included) |
2.6 lb (1.2 kg) |
