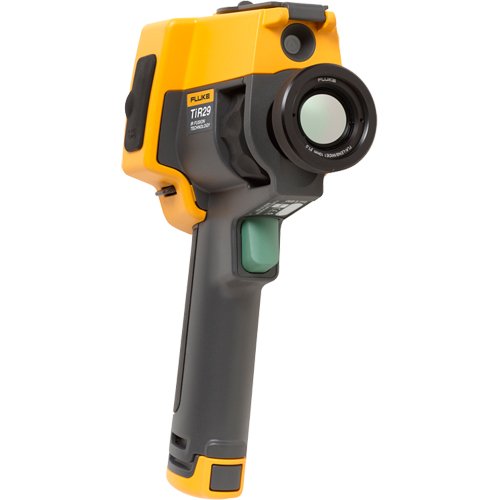

Fluke Ti29 280x210 IR resolution, 58,800 IR pixels, 60Hz Industrial-Commercial Thermal Imager

Category: Thermal Imagers

The greatest technological advancement in thermography may be how Fluke has made it so simple to capture images and analyze data right out of the box.

Superior image quality
Industry-leading thermal sensitivity and spatial resolution combined with a high definition display, creates the sharp-est images in the industry.

One-handed, easy-to-use interface
With just a push of your thumb, go from one-handed manual smart focus to adding picture-in-picture and even add voice comments.

Torture tested
Before a Fluke goes into your hands, we drop it from ours. Only Fluke thermal imagers are designed from the inside out to withstand a 6.5 ft drop.

Patented Fluke IR-Fusion
(Picture-in-picture and auto blending)
Precision visible and IR image alignment allows Fluke to offer the only on-camera blended infrared and visible image to better diagnose issues

Interchangeable lenses
Interchangeable wide-angle and IR-Fusion compatible telephoto lenses to cover any application.

Customer Applications
Ideal for:
  • Maintenance professionals
  • Troubleshooting technicians
  • Preventative maintenance professionals
  • Predictive maintenance professionals
  • Industrial and commercial electricians
  • Commercial HVAC/R technicians
  • Facilities managers
  • Weatherization specialists
  • Energy auditors
  • Restoration and remediation professionals
 Where is
it used
  • Industrial plants
    (manufacturing, process, petrochemical, etc)
  • Commercial buildings
  • Schools
  • Hospitals
  • Electrical and water utilities
  • Residential dwellings

Ti27 Specifications
Temperature
Measurement range
(not calibrated below -10°C)		 -20°C to +600°C (-4°F to +1112°F)
Measurement accuracy ± 2°C or 2% (at 25°C nominal, whichever is greater)
On-screen emissivity correction Yes
On-screen reflected background
temperature compensation		 Yes
On-screen transmission correction Yes
Imaging performance
Image capture frequency 60Hz refresh rate depending upon model variation
Detector type Focal Plane Array, uncooled microbolometer, 280 x 210 pixels
Thermal sensitivity (NETD) ≤ 0.05 °C at 30 °C target temp (50 mK)
Total pixels 58,800
Infrared spectral band 7.5 µm to 14 µm (long wave)
Visual (visible light) camera Industrial performance 2.0 megapixel
Minimum focus distance: 45 cm (approx. 18 in)
Standard infrared
lens type		 Field of view 23° x 17°
Spatial resolution (IFOV) 1.43 mRad
 Minimum focus distance 15 cm (approx. 6 in)
Optional telephoto
infrared lens type		 Field of view 11.5° x 8.7°
Spatial resolution (IFOV) 0.72 mRad
 Minimum focus distance 45 cm (approx. 18 in)
Optional wide-angle infrared lens type Field of view 46° x 34°
Spatial resolution (IFOV) 2.86 mRad
 Minimum focus distance 7.5 cm (approx. 3 in)
Focus mechanism Manual, one-handed Smart Focus capability
Image presentation
Palettes Standard Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
Ultra Contrast Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra
Level and span Smooth auto-scaling and manual scaling of level and span
Fast auto toggle between manual and auto modes Yes
Fast auto-rescale in manual mode Yes
Minimum span (in manual mode) 2.5°C (4.5°F)
Minimum span (in auto mode) 5°C (9°F)
TiS General specifications
Operating temperature -10°C to +50°C (14°F to 122°F)
Storage temperature -20°C to +50°C (-4°F to 122°F) without batteries
Relative humidity 10 % to 95 % non-condensing
Display 9.1 cm (3.7 in) diagonal landscape color VGA (640 x 480) LCD with backlight and clear protective cover
Controls and adjustments User selectable temperature scale (°C/°F)
Language selection
Time/Date set
Emissivity selection
Reflected background temperature compensation
Transmission correction
User selectable hot spot and cold spot, and center point on the image (other custom markers and shapes in SmartView® software)
High temperature alarm
User selectable backlight: "Full Bright" or "Auto"
Information display preference
Software SmartView full analysis and reporting software included
Batteries Two lithium ion rechargeable smart battery packs with five-segment LED display to show charge level
Battery life Four+ hours continuous use per battery pack (assumes 50 % brightness of LCD)
AC battery charging Two-bay ac battery charger (110 V ac to 220 V ac, 50/60 Hz) (included), or in-imager charging. AC mains adapters included. Optional 12 V automotive charging adapter.
Power saving Sleep mode activated after five minutes of inactivity, automatic power off after 30 minutes of inactivity
Safety standards CSA (US and CAN): C22.2 No. 61010-1-04, UL: UL STD 61010-1 (2nd Edition), ISA: 82.02.01
Electromagnetic compatibility Meets all applicable requirements in EN61326-1:2006
C Tick IEC/EN 61326-1
US FCC CFR 47, Part 15 Class B
Vibration 0.03 g2/Hz (3.8 grms), IEC 68-2-6
Shock 25 g, IEC 68-2-29
Drop 2 meter (6.5 feet) with standard lens
Size (H x W x L) 10.9in x 4.8in x 6.7in (27.7cm x 12.2cm x 17.0cm)
Weight (battery included) 2.3 lb (1.05 kg)
