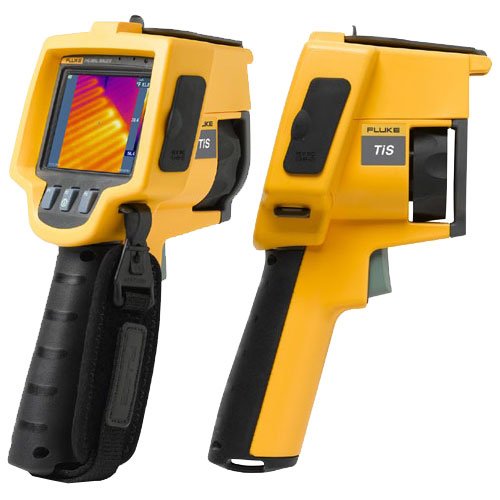

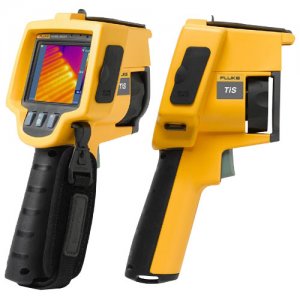

Fluke TiS Thermal Imaging Scanner for Building Diagnostics

Category: Thermal Imagers
Key benefits of Fluke TiS 9Hz thermal imagers in Building inspections
Building
 inspections
  • Expand your business offering with infrared inspections
  • Differentiate your service from competition
  • Find hidden problems
  • Identify issues faster
  • Identify areas for customers to reduce energy usage
  • Document and validate your work
  • Reduce liability
  • Increase safety
Customer Applications
Ideal for:
  • Building inspector
  • Home inspector
  • Energy auditor
  • Insulator
  • Weatherization crew
  • HVAC technician
  • Restoration & remediation
  • Professional roofing Contractors
  • General Contractors
  • Electrician
 Where is
it used
  • Residential homes
  • Multi-family residential buildings
  • Commercial buildings
  • Schools
  • Hospitals
  • Government buildings


Fluke proudly introduces the TiS 9Hz, an entry level thermal imager for quick, easy, and accurate problem identification and troubleshooting designed specifically for the building inspection professional. The Fluke TiS Thermal Imaging Scanner is ideal for building diagnostics and a top-performing imager. The Fluke-TiS-9Hz is the most affordable thermal imaging camera that meets the proposed RESNET infrared inspection standard.

Whether you are a building inspector, home inspector, electrician, energy auditor, HVAC, insulator, or windows installer the Fluke TiS Thermal Imaging Scanner is the perfect tool to help you identify hidden building construction issues, find moisture intrusion, detect energy loss/missing insulation, and many basic electrical connection and load problems.

Now the Fluke TiS quality, durability, and performance are available in a thermal imager engineered for the value-conscious building professional.
Applications for building inspections
  • Residential
    • Air infiltration (energy usage/comfort)
    • Missing, improperly installed or settled insulation
    • Roof leak inspection
    • Duct leaks
    • HVAC testing
    • In floor heating
    • Dryer vents
    • Residential electrical
    • Moisture intrusion & Condensation issues
  • Commercial
    • Roof leak inspection
    • Commercial HVAC
    • Moisture detection
    • Steam traps
    • Electrical inspections
    • Electrical motors
    • Pumps and hydraulics
    • Commercial energy loss (building envelope inspection)
    • Plumbing

TiS Specifications
Temperature
Measurement range
(not calibrated below -10°C)		 -20°C to +100°C (-4°F to +212°F)
Measurement accuracy ± 5°C or 5 % (at 25°C nominal, whichever is greater)
Imaging performance
Image capture frequency 9 Hz refresh rate
Detector type 120 X 120 Focal Plane Array, uncooled micro-bolometer
Thermal sensitivity (NETD) ≤ 0.1°C at 30°C target temp. (100 mK)
Infrared spectral band 7.5 µm to 14 µm (long wave)
Standard infrared lens type Field of view: 17° x 17°
Spatial resolution: (IFOV) 2.50 mRad
Minimum focus distance: 15 cm (approx. 6 in)
Focus mechanism Versatile, one-handed manual focus
Image presentation
Palettes Ironbow, Blue-Red, Grayscale
Level and span Smooth auto-scaling and lock of level and span
Minimum span (in auto mode) 5°C (9°F)
Image capture, review, save mechanism One-handed image capture, review, and save capability
Storage medium SD Memory Card (2 GB memory card will store at least 1200 fully radiometric (.is2) IR images annotations, or 3000 basic bitmap (.bmp) images, transferrable to PC via included multi-format USB card reader
File formats Non-radiometric (.bmp) or fully-radiometric (.is2)
No analysis software required for non-radiometic bitmap (.bmp) files
Export file formats w/SmartView software BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF
Memory review Sequential image navigation and review
TiS General specifications
Operating temperature -10°C to +50°C (14°F to 122°F)
Storage temperature -20°C to +50°C (-4°F to 122°F) without batteries
Relative humidity 10 % to 95 % non-condensing
Display 9.1 cm (3.7 in) diagonal landscape color VGA (640 x 480) LCD with backlight and clear protective cover
Controls and adjustments User selectable temperature scale (°C/°F)
Language selection
Time/Date set
User selectable backlight: "Full Bright" or "Auto"
Software SmartView full analysis and reporting software included
Batteries Internal rechargeable battery pack (included)
Battery life Three to four hours continuous use (assumes 50% brightness of LCD)
Battery charge time 2.5 hours to full charge
AC battery charging AC adapter/charger (110 V ac to 220 V ac, 50/60 Hz) (included), charges battery while imager is operating or turned off, ac mains adapters included
Power saving Sleep mode activated after five minutes of inactivity, automatic power off after 30 minutes of inactivity
