Hybrid Solar-Powered DMM for General Electrical Maintenance and Testing

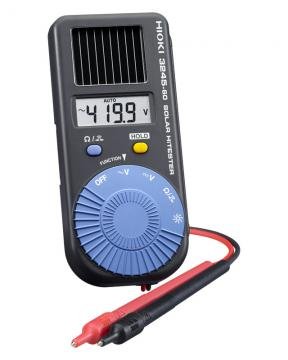

The Hioki 3245-60 is a solar powered pocket digital multimeter for general electrical maintenance and testing, powered by solar cells and a backup battery to result in an eco-friendly DMM.
Hybrid power system incorporates both a solar-charged main battery and a backup battery
• Pocket-sized CAT III (600 V) and CAT IV (300 V) conformance
(when test pin sleeves are attached)
• Neat test probe storage in the back of the unit
■ Basic specifications (Accuracy guaranteed for 1 year)
Regarding DMM Accuracy
Due to the many ranges and functions available in a DMM, only the basic accuracy is indicated for reference. Please refer to the individual catalogs for detailed accuracy information.
| DC voltage | 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt. |
|---|---|
| AC voltage 50 to 500 Hz | 4.199 V to 600 V, 4 ranges, Basic accuracy: ±2.3 % rdg. ±8 dgt. (Average rectified) |
| Resistance | 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2.0 % rdg. ±4 dgt. |
| Continuity buzzer | Detection level 50 Ω ±40 Ω, Diode check: Not available |
| Light meter | "1000" digits display to approx. 50,000 lx |
| Auto power save | Available (cancel selectable) |
| Display | Digital LCD, max. 4199 digits |
| Sampling rate | 2.5 times/sec |
| Main power supply | Rechargeable lithium-ion battery powered by solar source: 8 hours of use available on 3 hours of charging at 50,000 lx |
| Secondary power supply | Coin type lithium battery (CR2032) ×1, Continuous use with secondary battery: 150 hours |
| Dimensions and mass | 60 mm (2.36 in) W × 135 mm (5.31 in) H × 23 mm (0.91 in) D, 140 g (4.9 oz) |
| Accessories | Instruction manual ×1, Coin type lithium battery (CR2032) ×1 (for trial purposes only), Sleeves (Red/ Black each 1) |
