| Specifications |

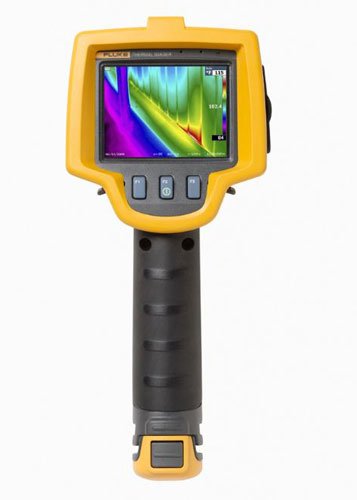

TiR32 |
| Thermal Sensitivity (NETD) |
40 mK (≤ 0.04°C at 30°C target temp.) |
| Temperature Range |
-4 to +302°F (-20 to +150°C) |
| Accuracy |
± 2°C or 2% (whichever is greater) |
| On Screen Emissivity Correction |
Yes |
| On Screen Reflected Background Temp. Compensation |
Yes |
| On Screen Transmission Correction |
Yes |
| Image Capture Frequency |
60Hz |
| Detector type |
320x240 Focal Plane Array, uncooled microbolometer |
| Infrared Spectral Band |
7.5µ to 14µ (long wave) |
| File Formats (on imager) |
.bmp, .jpg, .is2 |
| Memory review |
Thumbnail view navigation and review selection |
| Standard Palettes |
8 |
| Ultra Contrast Palettes |
8 |
| Toggle Between Manual and Auto Modes |
Yes |
| Auto-Rescale in Manual Mode |
Yes |
Minimum Span Manual Minimum Span Auto |
3.6°F (2.0°C) 5.4°F (3°C) |
| Color Alarms |
High temperature or Dew point alarm (user selectable) |
| Batteries |
2 lithium ion rechargeable smart battery packs |
| Battery Life |
4 hours continuous use |
| Size (H x W x L) |
10.9inx4.8inx6.7in (27.7cmx12.2cmx17.0cm) |
| Weight (including battery) |
2.3lbs(1.05kg) |
