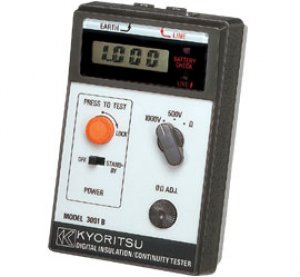

Compact and lightweight digital Insulation / Continuity Tester.
| Insulation Resistance | |
| Test Voltage | 500V/1000V |
| Measuring Ranges (Mid-scale Value) |
200MΩ (2/20/200MΩ) autoranging |
| Output Voltage on open circuit |
Rated test voltage +12% |
| Rated Current | 1~1.1mA DC approx. |
| Output Short Circuit Current |
1.5mA DC approx. |
| Accuracy | |±2%rdg±1dgt |
| Continuity Test | |
| Measuring Ranges (Mid-scale Value) |
200Ω (20/200Ω) autoranging |
| Output Voltage on open circuit |
600mV DC approx. |
| Output Short Circuit Current |
6mA approx. |
| Accuracy | |±2%rdg±0.1Ω|±1dgt |
| General | |
| Withstand Voltage | 2200V AC for 1 minute |
| Power Source | R6P (AA) (1.5V) × 8 |
| Dimensions | 144(L) × 93(W) × 61(D)mm |
| Weight | 460g approx. |
| Accessories | 7025 (Test leads) Pouch for test leads 9050 (Carrying Case) R6P (AA) × 8 Instruction Manual |
