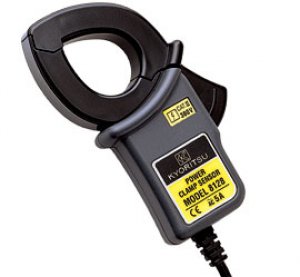

Load current clamp sensor
Applicable model 5010/5020, 6300, 6305, 6310, 6315
| Conductor size | Φ24 |
| Rated current | AC 5A (Max.50A) |
| Output voltage | AC 50mV/5A [Max.500mV/50A] (AC 10mV/A) |
| Accuracy | |±0.5%rdg±0.1mV (50/60Hz) |±1.0%rdg±0.2mV (40Hz~1kHz) |
| Phase Shift | within ±2.0º (45~65Hz) |
| Withstand voltage | AC 3540V for 5 seconds |
| Cable length | Approx. 3m |
| Output connector | MINI DIN 6pin |
| Operating temperature ranges | 0~50ºC, less than 85% RH (without condensation) |
| Output impedance | Approx. 20Ω |
| Applicable standards | IEC 61010-1:2001, IEC 61010-2-032:2002 CAT.III 300V pollution degree 2 |
| Dimensions | 100(L) x 60(W) x 26(D) mm |
| Weight | Approx. 160g |
| Accessories | 9095 (Portable case), Instruction manual, Cable marker |
| Option | 7146 (Banana Φ4 adjuster plug) 7185 (Extension Cable) |
