- 10 V and 100 V ESD testing
- 25 V & 50 V signal cable insulation testing
- 250 V & 500 V Insulation testing up to 50 GΩ (500 V)
- Continuity testing at 200 mA or 20 mA from 0.01 Ω to 999 kΩ
- DC and TRMS AC voltage measurement
- Large backlit display
- Combined analogue and dual digital readout
- Weatherproof to IP54
- Supplied with AA alkaline

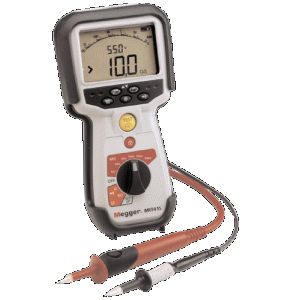

The new Megger MIT415 insulation and continuity tester has been designed for electrical testing by utilities, industrial, commercial and domestic electricians. The wide range of test voltages makes the MIT415 series ideal for the engineer or technician involved with combined applications of both communications circuits and power circuits such as would be found in elevator service/repair and routine maintenance. The low test voltage insulation ranges also makes the MIT415 ideal for ESD testing. The MIT415 replaces the well-established BMM2000ESD insulation tester, gives greater functionality with simplified operation, greater application range and an ergonomically designed case.
Specifications Insulation Insulation Nominal test voltages 10 V, 25 V, 50 V, 100 V, 250 V, 500 V Insulation resistance range 10 V - 1 GΩ
25 V - 2 GΩ
50 V - 5 GΩ
100 V - 10 GΩ
250 V - 20 GΩ
500 V - 50 GΩRange Full Scale Accuracy 500 V ±3% ±2 digits ±0.4% per GΩ
250 V ±3% ±2 digits ±0.8% per GΩ
100 V ±3% ±2 digits ±2.0% per GΩ
50 V ±3% ±2 digits ±4.0% per GΩ
25 V±3% ±2 digits ±2.0% per 100 MΩ
10 V±3% ±2 digits ±2.0% per 100 MΩAnalogue range 1 GΩ full scale Resolution 0.01 MΩ Short circuit current 2 mA +0% -50% Open circuit terminal voltage -0% + 20% ±1 V Test current on load 1 mA at min. pass value of insulation specified in BS7671, HD384and IEC364, 2 mA max. Leakage current range 0 µA 2000 µA Leakage current 10% ±3 digits Voltage display 3% ±3 digits ±0.5% of rated voltage Timer 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 minute count down in seconds Continuity Measurement 0,01 Ω to 99,9 Ω (0 to 100 Ω on analogue scale) Accuracy ±2% ±2 digits (0 to 100 Ω ) Open circuit voltage 5 V ±1 V Test current 200 mA (±1 mA) (0.01 Ω to 9.99 Ω )20 mA (±1 mA ) (10.0 Ω to 99.9 Ω ) Zero offset at probe tips 0,10 Ω typical Lead resistance zeroing Up to 9.00 Ω Buzzer Variable limit 1 Ω , 2 Ω , 5 Ω , 10 Ω , 20 Ω Resistance Measurement 0.01 kΩ to 1000 kΩ (0 to 1 MΩ on analogue scale) Accuracy ±3% ±2 digits Open circuit voltage 5 V ±1 V Short circuit current 20 µA ±5 µA Other Voltage range 0 to 600 V d.c. ±2% ±2 digits
10 mV to 600 V TRMS sinusoidal (40 to 400 Hz) ±2% ±1 digit
0 to 1000 V on analogue scale
Unspecified input level 0 - 10 mV (40 to 400 Hz)Temperature coefficient <0,1% per °C up to 1 GΩ
<0,1% per °C above 1 GΩ
