- 75V Live circuit inhibit
- 600V CATIV applications
- TRMS Voltage measurement
- Continuity testing at 200mA down to 0.01Ω
- Insulation testing to 1000V and to 200GΩ
- Analog and dual digital display
- Capacitance measurement
- Cable length by capacitance measurement
- PI, DAR and timed testing available
- Frequency measurement
- Results storage

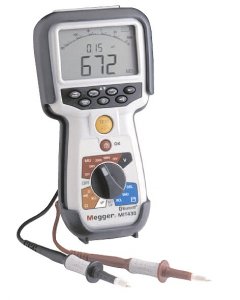

The Megger MIT400, MIT410, MIT420, MIT430, MIT480, MIT481, MIT485 series instruments have been developed specifically for the tele-communications industry. The insulation and continuity testers combine the latest range of measurement techniques with new instrument design to provide a state-of-the-art tester that is compact and comfortable to hold. The MIT480 series directly replaces the well-established BM80 product group, given greater functionality with simplified operation and greater application range.
The MIT481 is capable of saving test results for recall to the screen. A simple storage structure allows for a test number and screen results to be recalled individually.Insulation Voltage Range MIT480 MIT481 MIT485 50 V
100 V 250 V 500 V 1000 V Upper Insulation resistance Insulation Range 100 GΩ 200 GΩ 200 GΩ Leakage Current Display INS Test Voltage Display Continuity 200mA
(0.01 to 200 ohms)Variable current limit. 200mA/20 mA Fast buzzer - selectable threshold K Ω range to 999 K Ω Voltage Live circuit warning
at 75 VDefault voltmeter TRMS measurement
to 600 VMeasurement Ranges Frequency -
40 Hz to 400 HzCapacitance
(0.1 nF to 10 µF)Distance by Capacitance mV/transducer
(0.1 to 19.99 V)Features Backlight Battery condition display Insulation Timed -
PI - DAR TestsTest button plus
lock buttonAuto power down TNV 3 Switch Probe (supplied) Calcert with product Storage Bluetooth downloading Storage only
