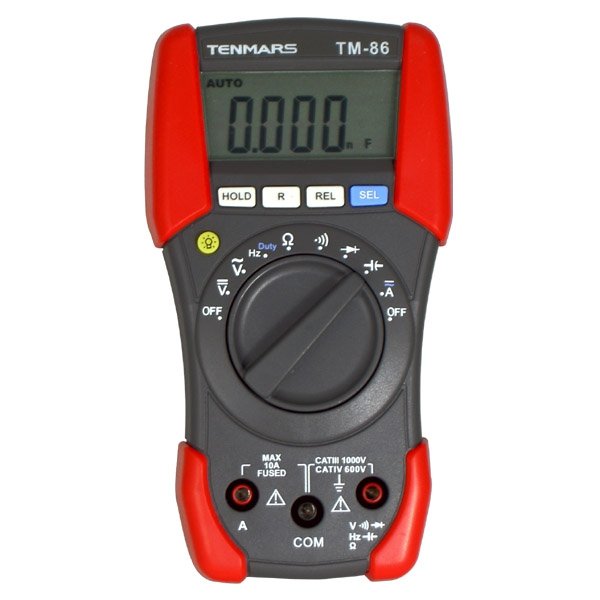

Model No.: : TM-86
Product Description
CAT IV 600V
LCD Backlit Display, with maximum reading of 3999
AC voltage range: 0 to 600V.
DC voltage range: 0 to 600V.
AC Current range: 0.1A to 10A.
DC Current range: 0.1A to 10A.
Auto power off (15 minutes).
ACV, DCV, ACA, DCA, Resistance, Diode, Frequency, Capacitance, Duty Cycle, Continuity, Range Hold, Data Hold, REL.
Accessories.
|
Overvoltage Category |
CAT IV 600V, CAT III 1000V |
|
LCD Display |
3999 counts |
|
Sampling Rate |
2.5 times/second |
|
Backlit |
Yes |
|
Auto Power Off |
Yes |
|
DC Voltage |
0.1mV to 600V ±(0.8% of rdg + 1 dgts) |
|
AC Voltage |
0.001V to 600V ±(1.2% of rdg + 3 dgt) |
|
DC Current |
0.01A to 10A ±(1.2% of rdg + 3 dgt) |
|
AC Current |
0.01A to 10A ±(1.2% of rdg + 3 dgt) |
|
Resistance/Accuracy |
400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40Ω; ±(1.0% of rdg + 2 dgt) |
|
Protection |
600Vrms |
|
Continuity Buzzer |
Yes |
|
Diode Test |
Test voltage 1.5 volts |
|
Frequency |
0.01Hz to 99.99KHz |
|
Duty Cycle/Accuracy |
20% to 80% ±(1.0% of rdg + 5 dgt) |
|
Capacitance/Accuracy |
5nF, 50nF, 500nF, 5µF, 50µF, 100µF ±(3.0% of rdg + 5 dgt) |
|
Range Hold |
Yes |
|
Data Hold |
Yes |
|
REL (Zero) |
Yes |
|
Accessories |
Carrying case, Test Leads, Operating Manual, Battery |
