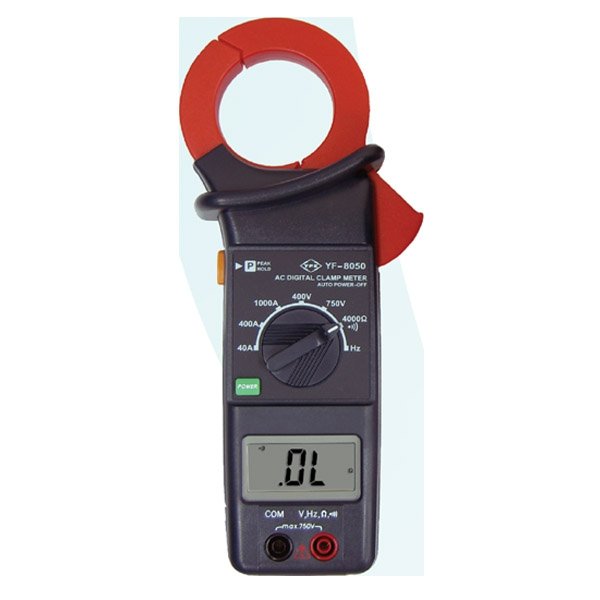

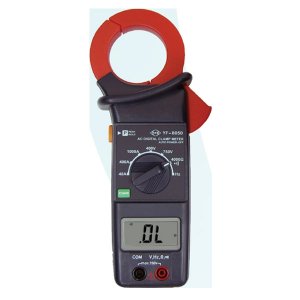

Model No.: : YF-8050
Product Description
CAT III 1000V
3-3/4 digit LCD display with maximum reading of 4000.
Overload indication.
Low battery indication.
AC voltage range: 0 to 750V.
AC current range: 0 to 1000A.
Peak Hold.
Test Ranges: ACV, ACA, Resistance, Frequency, Continuity.
Non-contact frequency measurement.
Auto Power Off.
Double Injection outer case.
|
Maximum Current |
1000 Amps |
|
Display |
4000 counts |
|
Max. Conductor Size |
52mm |
|
AC Current |
1mA to 1000A, ±(1.5% of rdg + 4 dgts) |
|
AC Voltage |
0.1V to 750V, ±(1.0% of rdg + 4 dgts) |
|
Resistance |
0.1Ω to 4000Ω, ±(1.0% of rdg + 2 dgts) |
|
Continuity Buzzer |
Yes |
|
Frequency |
1Hz to 4000KHz, ±(0.8% of rdg + 3 dgts) |
|
Auto Power Off |
Yes |
|
Peak Hold |
Yes |
|
Dimensions |
250mm (L) x 70mm (W) x 35mm (D) |
|
Weight |
420g |
