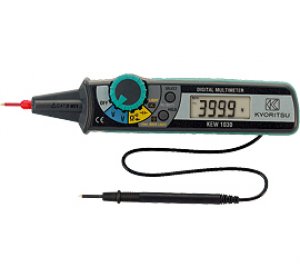

| Compact in Size, Light in Weight and Simple in Use. | |
| • | Double moulding provides comfortable and good feeling in hand. |
| • | Penlight illuminates brightly the point to be measured, even in dark place. |
| • | Backlight LCD is highly visible, even in darkness. |
| • | Unique wrapping mechanism for test lead in the rear side compartment. |
| • | Unique protection mechanism for the test prod for safety. |
| • | All ranges including Ohm range are protected against overload voltage of 600V. |
| AC V | 4/40/400/600V (4 Range auto) |±1.3%rdg|±5dgt (4/40V) (50/60Hz) |±1.6%rdg|±5dgt (400/600V) (50/60Hz) |
| DC V | 400m/4/40/400/600V (5 Range auto) |±0.8%rdg|±5dgt(400mV~400V) |±1.0%rdg|±5dgt(600V) |
| Ω | 400/4k/40k/400k/4M/40MΩ (6 Range auto) |±1.0%rdg|±5dgt (400Ω~4MΩ) |±2.5%rdg|±5dgt (40MΩ) |
| Diode check | Test voltage approx. 0.3~1.5V |
| Continuity check | Buzzer sounds when resistance is 120Ω or less. |
| Capacitance | 50n/500n/5µ/50µ/100µF (5 Range auto) |±3.5%rdg|±10dgt (50nF) |±3.5%rdg|±5dgt (500n~50µF) |±4.5%rdg|±5dgt (100µF) |
| Frequency | 5/50/500/5k/50k/200kHz |±0.1%rdg|±5dgt (Measurable input: 1.5Vrms or more) |
| Duty | 0.1~99.9% |±2.5%rdg|±5dgt (Pulse width / Pulse cycle) |
| Data hold | The measured value can be hold by pressing Data hold button |
| Battery voltage warning | When the battery voltage drops to 2.4V|±0.2V or less |
| Auto power-off | Built-in |
| Applicable standards | IEC 61010-1: 2001 CAT.III 600V IEC 61010-031 IEC 61326-1 |
| Power source | Button type battery LR44 (SR44)1.5V × 2 |
| Dimensions | 190(L) × 39(W) × 31(D)mm |
| Weight | Approx. 100g (including batteries) |
| Accessories | Carrying case, LR44 (1.5V) × 2, Instruction manual |
