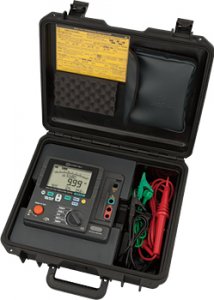

Kyoritsu 3127

Category: High Voltage Insulation Tester
Insulation Resistance up to 10TΩ
• Short-Circuit Current up to 5mA
• Wide Test Voltage from 250V to 5000V
• Diagnostic Insulation Tests: IR, PI, DAR, DD, SV, RAMP (Breakdown and Burn modes), Capacitance, Leakage Current
• Wireless communication by Bluetooth for transferring and showing real-time data to PC and Android device
• Memory and Logging functions
• Filter function reduces noise interference for obtaining stable measurements
• Large back light display with Bar-Graph indication
• Robust design for field use with IP65 (lid closed)
• Powered by rechargeable battery
• Safety Standard IEC 61010-1 CAT.Ⅳ 600V
Insulation resistance
Test voltage 250V (*1) 500V 1000V 2500V 5000V
Max
measurement
value		 9.99GΩ 99.9GΩ 199GΩ 999GΩ 9.99TΩ
Accuracy 0.0 - 99.9MΩ
±5%rdg±3dgt		 0.0 - 999MΩ
±5%rdg±3dgt		 0.0 - 1.99GΩ
±5%rdg±3dgt		 0.0 - 99.9GΩ
±5%rdg±3dgt		 0.0 - 99.9GΩ
±5%rdg±3dgt
0.1G - 9.99GΩ
±20%rdg		 1G - 99.9GΩ
±20%rdg		 2G - 199GΩ
±20%rdg		 100G - 999GΩ
±20%rdg		 0.1T - 9.99TΩ
±20%rdg
Short circuit current Max 5.0mA
Output voltage Accuracy -10 - +10% -10 - +20% 0 - +20%
Variable - -20% - 0% (5% step)
Monitor ±10%rdg±20V
Voltage measurement
Measuring range AC: 30 - 600V (50/60Hz), DC: ±30 - ±600V
Accuracy ±2%rdg±3dgt
Current measurement
Measuring range 0.00nA - 5.50mA
Accuracy ±10%rdg (*2)
Capacitance measurement
Measuring range 5.0nF - 50.0µF 5.0nF - 25.0µF
Accuracy ±5%rdg±5dgt
General
Power source Rechargeable Battery (Lead-acid Battery) 12V (*3)
Charging power: DC 15VA MAX
Communication Interface Bluetooth: Ver2.1 + EDR Class2, USB: Ver1.1
Applicable standards IEC 61010-1, 61010-2-030 CAT.Ⅳ 600V Pollution degree 2,
IEC 61010-031, IEC 61326-1, 2-2
Dimension 208 (L) × 225 (W) × 130 (D) mm
380 (L) × 430 (W) × 154 (D) mm (Hard case)
Weight 3127: 4kg Approx. (including battery),
Total: 8kg Approx. (including Accessories)
Accessories 7165A (Line probe), 7224A (Earth cord), 7225A (Guard cord),
8019 (Hook type prod), 8254 (Straight type prod),
8327EU (Power adaptor 15V/1A), 9171 (Hard case),
Instruction manual, Calibration Certificate
Optional 7168A (Line probe with alligator clip: 3m),
7253 (Longer line probe with alligator clip: 15m),
8258 (USB communication set),
8302 (Adaptor for recorder 1mV/1µA)

(*1): IR mode only

(*2): Determined by resistance and Voltage values (over 10MΩ)

(*3): No measurements are possible while charging

(*): Bluetooth is a registered trademark of the Bluetooth SIG, Inc.
