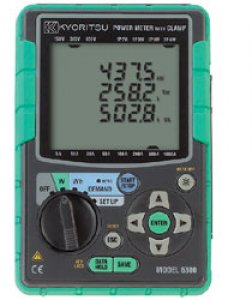

Kyoritsu 6300

Category: Power Meter
12 kinds of power measurements
Voltage (RMS), Current (RMS), active power, apparent power, reactive power, active energy, apparent energy, reactive energy, power factor (cos θ), frequency , demand measurement, current flowing on the neutral line
(Only on 3 phase 4 wire measurement)

Regenerative electric power can be measured
Detection of consumption power and regenerative electric power Regenerative electric power: This is the electric power which is generated by private power generator, and is supplied to electric power company.

Display 3 different data simultaneously on large screen.

4 types wiring system
1 phase - 2 wire (1ch) (2ch), (3ch)
1 phase - 3 wire
3 phase - 3 wire
3 phase - 4 wire
Recording internal can be set between 1 second and 1 hour
  1/2/5/10/15/20/30 second/seconds 1/2/5/10/15/20/30 minute/minutes 1 hour

Demand measurement
  Buzzer sounding and backlight blinking give warning not to exceed the pre-setting demand target value.

Double power supply system AC line and Alkaline size AA battery LR6 : 6 pcs.
  Continuous 7 hours can be measured by using batteries

Supplied with interface software for downloading data to PC via USB.

Direct communication with PC by USB connection

The interface for compact flash card (CF card) is equipped.
  An external memory up to 8GB or less can be used.

Back light function

Designed to Safety Standard IEC 61010-1 CAT.III 600V.
Measurements and parameters Voltage, Current, Active power, Apparent power, Reactive power, Active energy, Apparent energy, *Reactive energy, Power factor
(cos θ), Neutral current, Frequency meter.
Wiring connections 1P 2W, 3P 4W, 3P 3W, 1P 3W
Voltage :
Ranges [RMS] 150 / 300 / 600V (CF: 2.5 or less)
Allowable input 10~110% of each range
Display ranges 5~120% of each range
Accuracy |±0.3%rdg±0.2%f.s. (sine wave, 45~65Hz)
Current :
Ranges [RMS]
8128 ( 50A  type ) : 5 / 10 / 20 / 50A
8127 ( 100A  type ) : 10 / 20 / 50 / 100A
8126 ( 200A  type ) : 20 / 50 / 100 / 200A
8125 ( 500A  type ) : 50 / 100 / 200 / 500A
8124 ( 1000A  type ) : 100 / 200 / 500 / 1000A
8130 ( 1000A  type ) : 100 / 200 / 500 / 1000A
8129 ( 3000A  type ) : 1000 / 3000A
(CF:3.0 or less. 90% or less of each range)
Allowable input 10~110% of each range
Display ranges 1~120% of each range
Accuracy |±0.3%rdg±0.2%f.s. + Accuracy of Clamp sensor
(sine wave, 45~65Hz)
Activa power accuracy |±0.5%rdg±0.2%f.s. + Accuracy of Clamp sensor
(Power factor 1, Sine wave, 45~65Hz)
Frequency meter range 40~70Hz
Frequency meter accuracy |±3dgt
Effect of power factor Active power : ±1.0% rdg cos θ=±0.5 (PF=1)
Integration time for recording function 1/2/5/10/15/20/30 Seconds 1/2/5/10/15/20/30/60 Minutes
Display update period 1 second
Operating temperature and humidity ranges 0~+50ºC, less than 85% RH (without condensation)
Storage temperature and humidity ranges -20~+60ºC, less than 85% RH (without condensation)
Over load protection Voltage : 720V AC rms
Current : 600A AC rms (with Clamp sensor MODEL 8125)
PC communication Interface USB
CF card Interface Compact flash card
(Standard type 32 / 64 / 128 / 256 / 512MB / 1 / 2 / 4 / 8GB)

* The CF card larger than 2GB is usable, however, the possible stored size will be limited to 2GB. For example, when the CF card of 4GB or 8GB is used, the maximum stored size will be 2GB.
Safety standard IEC 61010-1 CAT.III 600V
Power supply AC Line : 100~240V±10% (50/60Hz)
DC Battery 9V : LR6×6(Battery life approx. 7h)
Power consumption 10VA (MAX)
Dimension 175(L)×120(W)×65(D) mm
Weight Approx. 800g (including batteries)
Accessories 7141B (Voltage test lead set),
7148 (USB Cable),
7170 (Power cord),
8307 (Compact Flash card 128MB),
8319 (CF Card reader),
9125 (Carrying bag),
PC Software, Batteries × 6, Quick manual
Optional accessories

8124,8125,8126,8127,8128 (Load Current Clamp Sensor).
8129/8130 (Flexible Clamp Sensor).
8312 (Power supply adaptor)
8322 (Compact flash card 256MB)
8323 (Compact flash card 1GB)
9132 (Carrying case with magnet)
Wide range of clamp sensor up to 1000A on request.
