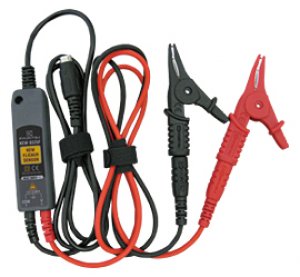

Flicker Sensor
Can measure Flicker in combination with KEW6310.
| For use with following model |
| 6310 |
| Max. input voltage | |AC 600Vrms, 848.4Vpeak |
| Input method | |Differential input |
| Output voltage | |AC 0~600mV (output/input: 1mV/V) |
| Measurement range | |6~600V |
| Accuracy (Frequency range) |
|±0.5% rdg±0.1mV (50/60Hz) |
| Operating Temperature and Humidity Ranges | |0~40ºC, less than 85% RH (no condensation) |
| Input impedance | |Approx. 3.2MΩ |
| Output impedance | |Approx. 1kΩ |
| Environment condition | |Altitude up to 2000m in indoor |
| Applicable standards | |IEC/EN 61010-1:2001 Measurement CAT.III 600V, pollution degree 2 |IEC/EN 61010-031:2002, IEC 61326:2001 (EMC standard) |
| Withstand voltage | |AC 5350V (actual value 50/60Hz) / for 5 seconds interval |measurement terminal and exterior main body |
| External dimensions/mass | |87(L)×26(W)×17(D)mm (protrusions omit) / |Approx. 135g |
| Length | |Approximately 2m |
| Output terminal | |MINI DIN 6PIN |
| Accompanying items | |Instruction manual |
| Option | |7197 (Small safety clip) |
