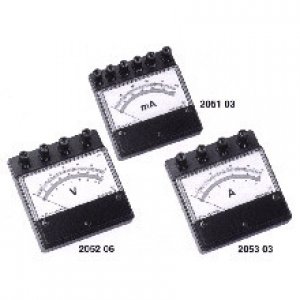

YOKOGAWA MINIATURE PORTABLE AMMETERS AND VOLTMETERS 2051, 2052, 2053

Category: PORTABLE ANALOG INSTRUMENTS

The E series of miniature portable ammeters & voltmeters consist of JIS C 1102-2 Class 1.0 and Class 1.5 instruments. The taut-band suspension system is used in the moving parts of models 2051 and 2052 to eliminate friction and provide strong resistance to shock impact.
These instruments are functional and compact, making them suitable for labs at research centers and schools. They are also very useful for factory setups in which numerous instruments are arranged on a small tabletop area, and they are small enough to be carried for maintenance service use.



Specifications - Model 2051 01

Max. Scale Value 30/100/300/1000/3000 µA DC
Approximate Internal Resistance and Consumed Power 5/6.8/2.8/0.9/0.3 kΩ
Operating Principle Permanent magnet moving coil type
Class JIS C 1102: 1997 Class 1.0
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 90°)
Needle Bladed Needle (red)
Linemax 250V (Ammeters only)
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 113 x 106 x 46 mm
Approx. External Weight 0.35 kg
Optional Accessories 2291 02 Carrying case for E series of miniature portable instruments
A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available

Features

  • Useful for both high-sensitivity and large-volume measurements
    DC: 30µA~30A, 0.3V~300V
    AC: 500 µA~25 A, 3V~300V
  • Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
  • Small and lightweight, with easy-to-read mirrored scale

Specifications - Model 2051 02

Max. Scale Value 0.3/1/3/10/30 mA DC
Approximate Internal Resistance and Consumed Power 970/390/140/43/14 Ω
Operating Principle Permanent magnet moving coil type
Class JIS C 1102: 1997 Class 1.0
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 90°)
Needle Bladed Needle (red)
Linemax 250V (Ammeters only)
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 113 x 106 x 46 mm
Approx. External Weight 0.35 kg
Optional Accessories 2291 02 Carrying case for E series of miniature portable instruments
A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available

Features

  • Useful for both high-sensitivity and large-volume measurements
    DC: 30µA~30A, 0.3V~300V
    AC: 500 µA~25 A, 3V~300V
  • Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
  • Small and lightweight, with easy-to-read mirrored scale

Specifications - Model 2051 03

Max. Scale Value 10/30/100/300/1000 mA DC
Approximate Internal Resistance and Consumed Power 4/1.4/0.4/0.14/0.04 Ω
Operating Principle Permanent magnet moving coil type
Class JIS C 1102: 1997 Class 1.0
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 90°)
Needle Bladed Needle (red)
Linemax 250V (Ammeters only)
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 113 x 106 x 46 mm
Approx. External Weight 0.35 kg
Optional Accessories 2291 02 Carrying case for E series of miniature portable instruments
A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available

Features

  • Useful for both high-sensitivity and large-volume measurements
    DC: 30µA~30A, 0.3V~300V
    AC: 500 µA~25 A, 3V~300V
  • Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
  • Small and lightweight, with easy-to-read mirrored scale

Specifications - Model 2051 04

Max. Scale Value 0.3/1/3/10/30 A DC
Approximate Internal Resistance and Consumed Power 0.14/0.04/0.014/0.004/0.001 Ω
Operating Principle Permanent magnet moving coil type
Class JIS C 1102: 1997 Class 1.0
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 90°)
Needle Bladed Needle (red)
Linemax 250V (Ammeters only)
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 113 x 106 x 46 mm
Approx. External Weight 0.35 kg
Optional Accessories 2291 02 Carrying case for E series of miniature portable instruments
A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available

Features

  • Useful for both high-sensitivity and large-volume measurements
    DC: 30µA~30A, 0.3V~300V
    AC: 500 µA~25 A, 3V~300V
  • Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
  • Small and lightweight, with easy-to-read mirrored scale

Specifications - Model 2051 05

Max. Scale Value 0.3/1/3/10/30 V DC
Approximate Internal Resistance and Consumed Power 100µA(10kΩ/V)
Operating Principle Permanent magnet moving coil type
Class JIS C 1102: 1997 Class 1.0
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 90°)
Needle Bladed Needle (red)
Linemax 250V (Ammeters only)
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 113 x 106 x 46 mm
Approx. External Weight 0.35 kg
Optional Accessories 2291 02 Carrying case for E series of miniature portable instruments
A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available

Features

  • Useful for both high-sensitivity and large-volume measurements
    DC: 30µA~30A, 0.3V~300V
    AC: 500 µA~25 A, 3V~300V
  • Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
  • Small and lightweight, with easy-to-read mirrored scale

Specifications - Model 2051 06

Max. Scale Value 3/10/30/100/300 V DC
Approximate Internal Resistance and Consumed Power 100µA(10kΩ/V)
Operating Principle Permanent magnet moving coil type
Class JIS C 1102: 1997 Class 1.0
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 90°)
Needle Bladed Needle (red)
Linemax 250V (Ammeters only)
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 113 x 106 x 46 mm
Approx. External Weight 0.35 kg
Optional Accessories 2291 02 Carrying case for E series of miniature portable instruments
A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available

Features

  • Useful for both high-sensitivity and large-volume measurements
    DC: 30µA~30A, 0.3V~300V
    AC: 500 µA~25 A, 3V~300V
  • Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
  • Small and lightweight, with easy-to-read mirrored scale

Specifications - Model 2051 11

Max. Scale Value ± 0.15/0.5/1.5/5/15 mA DC
Approximate Internal Resistance and Consumed Power 970/390/140/43/14 Ω
Operating Principle Permanent magnet moving coil type
Class JIS C 1102: 1997 Class 1.0
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 90°)
Needle Bladed Needle (red)
Linemax 250V (Ammeters only)
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 113 x 106 x 46 mm
Approx. External Weight 0.35 kg
Optional Accessories 2291 02 Carrying case for E series of miniature portable instruments
A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available

Features

  • Useful for both high-sensitivity and large-volume measurements
    DC: 30µA~30A, 0.3V~300V
    AC: 500 µA~25 A, 3V~300V
  • Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
  • Small and lightweight, with easy-to-read mirrored scale

Specifications - Model 2051 12

Max. Scale Value ± 0.3/1/3/10/30 mA DC
Approximate Internal Resistance and Consumed Power 1170/400/135/40/14 Ω
Operating Principle Permanent magnet moving coil type
Class JIS C 1102: 1997 Class 1.0
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 90°)
Needle Bladed Needle (red)
Linemax 250V (Ammeters only)
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 113 x 106 x 46 mm
Approx. External Weight 0.35 kg
Optional Accessories 2291 02 Carrying case for E series of miniature portable instruments
A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available

Features

  • Useful for both high-sensitivity and large-volume measurements
    DC: 30µA~30A, 0.3V~300V
    AC: 500 µA~25 A, 3V~300V
  • Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
  • Small and lightweight, with easy-to-read mirrored scale

Specifications - Model 2051 13

Max. Scale Value ± 5/15/50/150/500 mA DC
Approximate Internal Resistance and Consumed Power 4/1.4/0.4/0.14/0.04 Ω
Operating Principle Permanent magnet moving coil type
Class JIS C 1102: 1997 Class 1.0
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 90°)
Needle Bladed Needle (red)
Linemax 250V (Ammeters only)
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 113 x 106 x 46 mm
Approx. External Weight 0.35 kg
Optional Accessories 2291 02 Carrying case for E series of miniature portable instruments
A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available

Features

  • Useful for both high-sensitivity and large-volume measurements
    DC: 30µA~30A, 0.3V~300V
    AC: 500 µA~25 A, 3V~300V
  • Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
  • Small and lightweight, with easy-to-read mirrored scale

Specifications - Model 2051 14

Max. Scale Value ± 10/30/100/300/1000 mA DC
Approximate Internal Resistance and Consumed Power 4/1.5/0.4/0.15/0.04 Ω
Operating Principle Permanent magnet moving coil type
Class JIS C 1102: 1997 Class 1.0
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 90°)
Needle Bladed Needle (red)
Linemax 250V (Ammeters only)
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 113 x 106 x 46 mm
Approx. External Weight 0.35 kg
Optional Accessories 2291 02 Carrying case for E series of miniature portable instruments
A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available

Features

  • Useful for both high-sensitivity and large-volume measurements
    DC: 30µA~30A, 0.3V~300V
    AC: 500 µA~25 A, 3V~300V
  • Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
  • Small and lightweight, with easy-to-read mirrored scale

Specifications - Model 2051 15,

Max. Scale Value ± 0.15/0.5/1.5/5/15 A DC
Approximate Internal Resistance and Consumed Power 0.14/0.04/0.014/0.004/0.001 Ω
Operating Principle Permanent magnet moving coil type
Class JIS C 1102: 1997 Class 1.0
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 90°)
Needle Bladed Needle (red)
Linemax 250V (Ammeters only)
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 113 x 106 x 46 mm
Approx. External Weight 0.35 kg
Optional Accessories 2291 02 Carrying case for E series of miniature portable instruments
A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available

Features

  • Useful for both high-sensitivity and large-volume measurements
    DC: 30µA~30A, 0.3V~300V
    AC: 500 µA~25 A, 3V~300V
  • Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
  • Small and lightweight, with easy-to-read mirrored scale

Specifications - Model 2051 16

Max. Scale Value ± 0.3/1/3/10/30 A DC
Approximate Internal Resistance and Consumed Power 0.15/0.14/0.11/0.004/0.001 Ω
Operating Principle Permanent magnet moving coil type
Class JIS C 1102: 1997 Class 1.0
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 90°)
Needle Bladed Needle (red)
Linemax 250V (Ammeters only)
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 113 x 106 x 46 mm
Approx. External Weight 0.35 kg
Optional Accessories 2291 02 Carrying case for E series of miniature portable instruments
A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available

Features

  • Useful for both high-sensitivity and large-volume measurements
    DC: 30µA~30A, 0.3V~300V
    AC: 500 µA~25 A, 3V~300V
  • Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
  • Small and lightweight, with easy-to-read mirrored scale

Specifications - Model 2051 17

Max. Scale Value ± 0.15/0.5/1.5/5/15 V DC
Approximate Internal Resistance and Consumed Power 100µA(20kΩ/V)
Operating Principle Permanent magnet moving coil type
Class JIS C 1102: 1997 Class 1.0
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 90°)
Needle Bladed Needle (red)
Linemax 250V (Ammeters only)
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 113 x 106 x 46 mm
Approx. External Weight 0.35 kg
Optional Accessories 2291 02 Carrying case for E series of miniature portable instruments
A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available

Specifications - Model 2051 18

Max. Scale Value ± 0.3/1/3/10/30 V DC
Approximate Internal Resistance and Consumed Power 100µA(10kΩ/V)
Operating Principle Permanent magnet moving coil type
Class JIS C 1102: 1997 Class 1.0
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 90°)
Needle Bladed Needle (red)
Linemax 250V (Ammeters only)
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 113 x 106 x 46 mm
Approx. External Weight 0.35 kg
Optional Accessories 2291 02 Carrying case for E series of miniature portable instruments
A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available

Features

  • Useful for both high-sensitivity and large-volume measurements
    DC: 30µA~30A, 0.3V~300V
    AC: 500 µA~25 A, 3V~300V
  • Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
  • Small and lightweight, with easy-to-read mirrored scale

Specifications - Model 2051 19

Max. Scale Value ± 1.5/5/15/50/150 V DC
Approximate Internal Resistance and Consumed Power 100µA(20kΩ/V)
Operating Principle Permanent magnet moving coil type
Class JIS C 1102: 1997 Class 1.0
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 90°)
Needle Bladed Needle (red)
Linemax 250V (Ammeters only)
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 113 x 106 x 46 mm
Approx. External Weight 0.35 kg
Optional Accessories 2291 02 Carrying case for E series of miniature portable instruments
A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available

Features

  • Useful for both high-sensitivity and large-volume measurements
    DC: 30µA~30A, 0.3V~300V
    AC: 500 µA~25 A, 3V~300V
  • Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
  • Small and lightweight, with easy-to-read mirrored scale

Specifications - Model 2051 20

Max. Scale Value ± 3/10/30/100/300 V DC
Approximate Internal Resistance and Consumed Power 100µA(10kΩ/V)
Operating Principle Permanent magnet moving coil type
Class JIS C 1102: 1997 Class 1.0
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 90°)
Needle Bladed Needle (red)
Linemax 250V (Ammeters only)
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 113 x 106 x 46 mm
Approx. External Weight 0.35 kg
Optional Accessories 2291 02 Carrying case for E series of miniature portable instruments
A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available

Features

  • Useful for both high-sensitivity and large-volume measurements
    DC: 30µA~30A, 0.3V~300V
    AC: 500 µA~25 A, 3V~300V
  • Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
  • Small and lightweight, with easy-to-read mirrored scale

Specifications - Model 2052 01

Max. Scale Value 0.5/1/2.5 mA AC
Approximate Internal Resistance and Consumed Power 3 V
Operating Principle Rectifier type (approximating RMS rectifier type for 15~300V)
Class JIS C 1102: 1997 Class 1.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 90°)
Needle Bladed Needle (red)
Linemax 250V (Ammeters only)
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 113 x 106 x 46 mm
Approx. External Weight 0.35 kg
Optional Accessories 2291 02 Carrying case for E series of miniature portable instruments
A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available

Features

  • Useful for both high-sensitivity and large-volume measurements
    DC: 30µA~30A, 0.3V~300V
    AC: 500 µA~25 A, 3V~300V
  • Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
  • Small and lightweight, with easy-to-read mirrored scale

Specifications - Model 2052 02

Max. Scale Value 2.5/5/10 mA AC
Approximate Internal Resistance and Consumed Power 3 V
Operating Principle Rectifier type (approximating RMS rectifier type for 15~300V)
Class JIS C 1102: 1997 Class 1.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 90°)
Needle Bladed Needle (red)
Linemax 250V (Ammeters only)
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 113 x 106 x 46 mm
Approx. External Weight 0.35 kg
Optional Accessories 2291 02 Carrying case for E series of miniature portable instruments
A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available

Features

  • Useful for both high-sensitivity and large-volume measurements
    DC: 30µA~30A, 0.3V~300V
    AC: 500 µA~25 A, 3V~300V
  • Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
  • Small and lightweight, with easy-to-read mirrored scale

Specifications - Model 2052 03

Max. Scale Value 10/25/50 mA AC
Approximate Internal Resistance and Consumed Power 3 V
Operating Principle Rectifier type (approximating RMS rectifier type for 15~300V)
Class JIS C 1102: 1997 Class 1.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 90°)
Needle Bladed Needle (red)
Linemax 250V (Ammeters only)
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 113 x 106 x 46 mm
Approx. External Weight 0.35 kg
Optional Accessories 2291 02 Carrying case for E series of miniature portable instruments
A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available

Features

  • Useful for both high-sensitivity and large-volume measurements
    DC: 30µA~30A, 0.3V~300V
    AC: 500 µA~25 A, 3V~300V
  • Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
  • Small and lightweight, with easy-to-read mirrored scale

Specifications - Model 2052 04

Max. Scale Value 50/100/250 mA AC
Approximate Internal Resistance and Consumed Power 3 V
Operating Principle Rectifier type (approximating RMS rectifier type for 15~300V)
Class JIS C 1102: 1997 Class 1.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 90°)
Needle Bladed Needle (red)
Linemax 250V (Ammeters only)
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 113 x 106 x 46 mm
Approx. External Weight 0.35 kg
Optional Accessories 2291 02 Carrying case for E series of miniature portable instruments
A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available

Features

  • Useful for both high-sensitivity and large-volume measurements
    DC: 30µA~30A, 0.3V~300V
    AC: 500 µA~25 A, 3V~300V
  • Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
  • Small and lightweight, with easy-to-read mirrored scale

Specifications - Model 2052 05

Max. Scale Value 3/7.5/15 V AC
Approximate Internal Resistance and Consumed Power 1 mA
Operating Principle Rectifier type (approximating RMS rectifier type for 15~300V)
Class JIS C 1102: 1997 Class 1.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 90°)
Needle Bladed Needle (red)
Linemax 250V (Ammeters only)
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 113 x 106 x 46 mm
Approx. External Weight 0.35 kg
Optional Accessories 2291 02 Carrying case for E series of miniature portable instruments
A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available

Features

  • Useful for both high-sensitivity and large-volume measurements
    DC: 30µA~30A, 0.3V~300V
    AC: 500 µA~25 A, 3V~300V
  • Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
  • Small and lightweight, with easy-to-read mirrored scale

Specifications - Model 2052 06

Max. Scale Value 15/30/75 V AC
Approximate Internal Resistance and Consumed Power 1 mA
Operating Principle Rectifier type (approximating RMS rectifier type for 15~300V)
Class JIS C 1102: 1997 Class 1.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 90°)
Needle Bladed Needle (red)
Linemax 250V (Ammeters only)
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 113 x 106 x 46 mm
Approx. External Weight 0.35 kg
Optional Accessories 2291 02 Carrying case for E series of miniature portable instruments
A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available

Features

  • Useful for both high-sensitivity and large-volume measurements
    DC: 30µA~30A, 0.3V~300V
    AC: 500 µA~25 A, 3V~300V
  • Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
  • Small and lightweight, with easy-to-read mirrored scale

Specifications - Model 2052 07

Max. Scale Value 75/150/300 V AC
Approximate Internal Resistance and Consumed Power 1 mA
Operating Principle Rectifier type (approximating RMS rectifier type for 15~300V)
Class JIS C 1102: 1997 Class 1.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 90°)
Needle Bladed Needle (red)
Linemax 250V (Ammeters only)
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 113 x 106 x 46 mm
Approx. External Weight 0.35 kg
Optional Accessories 2291 02 Carrying case for E series of miniature portable instruments
A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available

Features

  • Useful for both high-sensitivity and large-volume measurements
    DC: 30µA~30A, 0.3V~300V
    AC: 500 µA~25 A, 3V~300V
  • Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
  • Small and lightweight, with easy-to-read mirrored scale

Specifications - Model 2053 01

Max. Scale Value 0.25/0.5/1 A AC
Approximate Internal Resistance and Consumed Power 1/1/1 VA
Operating Principle Moving iron type
Class JIS C 1102: 1997 Class 1.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 90°)
Needle Bladed Needle (red)
Linemax 250V (Ammeters only)
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 113 x 106 x 46 mm
Approx. External Weight 0.35 kg
Optional Accessories 2291 02 Carrying case for E series of miniature portable instruments
A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available

Features

  • Useful for both high-sensitivity and large-volume measurements
    DC: 30µA~30A, 0.3V~300V
    AC: 500 µA~25 A, 3V~300V
  • Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
  • Small and lightweight, with easy-to-read mirrored scale

Specifications - Model 2053 02

Max. Scale Value 1/2 5/5 A AC
Approximate Internal Resistance and Consumed Power 0.9/0.8/0.7 VA
Operating Principle Moving iron type
Class JIS C 1102: 1997 Class 1.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 90°)
Needle Bladed Needle (red)
Linemax 250V (Ammeters only)
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 113 x 106 x 46 mm
Approx. External Weight 0.35 kg
Optional Accessories 2291 02 Carrying case for E series of miniature portable instruments
A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available

Features

  • Useful for both high-sensitivity and large-volume measurements
    DC: 30µA~30A, 0.3V~300V
    AC: 500 µA~25 A, 3V~300V
  • Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
  • Small and lightweight, with easy-to-read mirrored scale

Specifications - Model 2053 03

Max. Scale Value 5/10/25 A
Approximate Internal Resistance and Consumed Power 0.6/0.9/2.3 VA
Operating Principle Moving iron type
Class JIS C 1102: 1997 Class 1.5
Operating Position Horizontal
Scale Length Approximately 135 mm (Deflection Angle: 90°)
Needle Bladed Needle (red)
Linemax 250V (Ammeters only)
Operating Temperature Range 0 ~ 40 ºC
Operating Humidity Range 30 ~ 75% RH
Storage Temperature Range -10 ~ 50 ºC
Storage Humidity Range 25 ~ 80% RH
Approx. External Dimension 113 x 106 x 46 mm
Approx. External Weight 0.35 kg
Optional Accessories 2291 02 Carrying case for E series of miniature portable instruments
A case (B9604WM) that can hold the instrument as well as leads and other accessories is also available

Features

  • Useful for both high-sensitivity and large-volume measurements
    DC: 30µA~30A, 0.3V~300V
    AC: 500 µA~25 A, 3V~300V
  • Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
  • Small and lightweight, with easy-to-read mirrored scale

MODEL
NUMBERS

ModelDescription
2051 20 3/10/30/100/300 V DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0
2051 03 10/30/100/300/1000 mA DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0
2051 15 0.15/0.5/1.5/5/15 A DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0
2051 11 0.15/0.5/1.5/5/15 mA DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0
2051 13 5/15/50/150/500 mA DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0
2053 03 5/10/25 A, Moving iron type, JIS C 1102 : 1997 Class 1.5
2051 14 10/30/100/300/1000 mA DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0
2051 12 0.3/1/3/10/30 mA DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0
2051 16 0.3/1/3/10/30 A DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0
2052 07 75/150/300 V AC, Rectifier type (approximating RMS rectifier type for 15~300V), JIS C 1102 : 1997 Class 1.5
2053 01 0.25/0.5/1 A AC, Moving iron type, JIS C 1102 : 1997 Class 1.5
2053 02 1/2 5/5 A AC, Moving iron type, JIS C 1102 : 1997 Class 1.5
2052 02 2.5/5/10 mA AC, Rectifier type (approximating RMS rectifier type for 15~300V), JIS C 1102 : 1997 Class 1.5
2052 01 0.5/1/2.5 mA AC, Rectifier type (approximating RMS rectifier type for 15~300V), JIS C 1102 : 1997 Class 1.5
2052 06 15/30/75 V AC, Rectifier type (approximating RMS rectifier type for 15~300V), JIS C 1102 : 1997 Class 1.5
2052 04 50/100/250 mA AC, Rectifier type (approximating RMS rectifier type for 15~300V), JIS C 1102 : 1997 Class 1.5
2051 04 0.3/1/3/10/30 A DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0
2051 02 0.3/1/3/10/30 mA DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0
2051 05 0.3/1/3/10/30 V DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0
2051 06 3/10/30/100/300 V DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0
2051 17 0.15/0.5/1.5/5/15 V DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0
2052 03 10/25/50 mA AC, Rectifier type (approximating RMS rectifier type for 15~300V), JIS C 1102 : 1997 Class 1.5
2052 05 3/7.5/15 V AC, Rectifier type (approximating RMS rectifier type for 15~300V), JIS C 1102 : 1997 Class 1.5
2051 01 30/100/300/1000/3000 V A DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0
2051 18 0.3/1/3/10/30 V DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0
2051 19 1.5/5/15/50/150 V DC, Permanent magnet moving coil type, JIS C 1102 : 1997 Class 1.0

Location

Ask about this product
