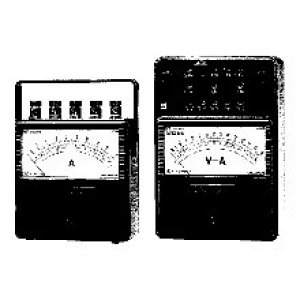

Models 2013 and 2014 ammeters & voltmeters are moving iron type instruments using a taut-band suspension system. The suspension system provides excellent reproducibility without friction, and good resistance to shock impact. A cap shield mechanism serving to reduce external magnetic fields, a superior temperature compensation circuit, and other components ensure stable performance.
Specifications - Model 201301
| Max. Scale Value | 20/100 mA |
|---|---|
| Approximate Internal Resistance and Consumed Power | 0.3/0.2 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 0.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 85°) |
| Operating Frequency Range | 45 ~ 65 Hz |
| Linemax | 250V |
| Scale Divisions | 100 divisions |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 195 x 170 x 87 mm |
| Approx. External Weight | 1.7 kg |
| Optional Accessories | 2291 01 Carrying case for 2013 2292 01 Carrying case for 2014 |
Features:
- Taut-band suspension system eliminates friction and provides good resistance to shock impact.
- Stable performance ensures that changes over time are negligible.
- Magnetic circuit reduces the effects of external magnetic fields.
- Superior temperature compensation circuit reduces external temperature effects.
Specifications - Model 201302
| Max. Scale Value | 50/250 mA |
|---|---|
| Approximate Internal Resistance and Consumed Power | 0.5/0.5 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 0.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 85°) |
| Operating Frequency Range | 45 ~ 65 Hz |
| Linemax | 250V |
| Scale Divisions | 100/125 divisions |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 195 x 170 x 87 mm |
| Approx. External Weight | 1.7 kg |
| Optional Accessories | 2291 01 Carrying case for 2013 2292 01 Carrying case for 2014 |
Features:
- Taut-band suspension system eliminates friction and provides good resistance to shock impact.
- Stable performance ensures that changes over time are negligible.
- Magnetic circuit reduces the effects of external magnetic fields.
- Superior temperature compensation circuit reduces external temperature effects.
Specifications - Model 201303
| Max. Scale Value | 100/500 mA |
|---|---|
| Approximate Internal Resistance and Consumed Power | 0.5/0.5 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 0.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 85°) |
| Operating Frequency Range | 45 ~ 65 Hz |
| Linemax | 250V |
| Scale Divisions | 100 divisions |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 195 x 170 x 87 mm |
| Approx. External Weight | 1.7 kg |
| Optional Accessories | 2291 01 Carrying case for 2013 2292 01 Carrying case for 2014 |
Features:
- Taut-band suspension system eliminates friction and provides good resistance to shock impact.
- Stable performance ensures that changes over time are negligible.
- Magnetic circuit reduces the effects of external magnetic fields.
- Superior temperature compensation circuit reduces external temperature effects.
Specifications - Model 201304
| Max. Scale Value | 0.2/1 A |
|---|---|
| Approximate Internal Resistance and Consumed Power | 0.4/0.4 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 0.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 85°) |
| Operating Frequency Range | 45 ~ 65 Hz |
| Linemax | 250V |
| Scale Divisions | 100 divisions |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 195 x 170 x 87 mm |
| Approx. External Weight | 1.7 kg |
| Optional Accessories | 2291 01 Carrying case for 2013 2292 01 Carrying case for 2014 |
Features:
- Taut-band suspension system eliminates friction and provides good resistance to shock impact.
- Stable performance ensures that changes over time are negligible.
- Magnetic circuit reduces the effects of external magnetic fields.
- Superior temperature compensation circuit reduces external temperature effects.
Specifications - Model 201305
| Max. Scale Value | 0.5/2.5 A |
|---|---|
| Approximate Internal Resistance and Consumed Power | 0.5/0.5 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 0.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 85°) |
| Operating Frequency Range | 45 ~ 65 Hz |
| Linemax | 250V |
| Scale Divisions | 100/125 divisions |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 195 x 170 x 87 mm |
| Approx. External Weight | 1.7 kg |
| Optional Accessories | 2291 01 Carrying case for 2013 2292 01 Carrying case for 2014 |
Features:
- Taut-band suspension system eliminates friction and provides good resistance to shock impact.
- Stable performance ensures that changes over time are negligible.
- Magnetic circuit reduces the effects of external magnetic fields.
- Superior temperature compensation circuit reduces external temperature effects.
Specifications - Model 201306
| Max. Scale Value | 1/5 A |
|---|---|
| Approximate Internal Resistance and Consumed Power | 0.6/0.6 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 0.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 85°) |
| Operating Frequency Range | 45 ~ 65 Hz |
| Linemax | 250V |
| Scale Divisions | 100 divisions |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 195 x 170 x 87 mm |
| Approx. External Weight | 1.7 kg |
| Optional Accessories | 2291 01 Carrying case for 2013 2292 01 Carrying case for 2014 |
Features:
- Taut-band suspension system eliminates friction and provides good resistance to shock impact.
- Stable performance ensures that changes over time are negligible.
- Magnetic circuit reduces the effects of external magnetic fields.
- Superior temperature compensation circuit reduces external temperature effects.
Specifications - Model 201307
| Max. Scale Value | 2/10 A |
|---|---|
| Approximate Internal Resistance and Consumed Power | 0.7/0.7 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 0.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 85°) |
| Operating Frequency Range | 45 ~ 65 Hz |
| Linemax | 250V |
| Scale Divisions | 100 divisions |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 195 x 170 x 87 mm |
| Approx. External Weight | 1.7 kg |
| Optional Accessories | 2291 01 Carrying case for 2013 2292 01 Carrying case for 2014 |
Features:
- Taut-band suspension system eliminates friction and provides good resistance to shock impact.
- Stable performance ensures that changes over time are negligible.
- Magnetic circuit reduces the effects of external magnetic fields.
- Superior temperature compensation circuit reduces external temperature effects.
Specifications - Model 201308
| Max. Scale Value | 5/25 A |
|---|---|
| Approximate Internal Resistance and Consumed Power | 1/1 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 0.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 85°) |
| Operating Frequency Range | 45 ~ 65 Hz |
| Linemax | 250V |
| Scale Divisions | 100/125 divisions |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 195 x 170 x 87 mm |
| Approx. External Weight | 1.7 kg |
| Optional Accessories | 2291 01 Carrying case for 2013 2292 01 Carrying case for 2014 |
Features:
- Taut-band suspension system eliminates friction and provides good resistance to shock impact.
- Stable performance ensures that changes over time are negligible.
- Magnetic circuit reduces the effects of external magnetic fields.
- Superior temperature compensation circuit reduces external temperature effects.
Specifications - Model 201309
| Max. Scale Value | 10/50 A |
|---|---|
| Approximate Internal Resistance and Consumed Power | 1.2/1.8 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 0.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 85°) |
| Operating Frequency Range | 45 ~ 65 Hz |
| Linemax | 250V |
| Scale Divisions | 100 divisions |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 195 x 170 x 87 mm |
| Approx. External Weight | 1.7 kg |
| Optional Accessories | 2291 01 Carrying case for 2013 2292 01 Carrying case for 2014 |
Features:
- Taut-band suspension system eliminates friction and provides good resistance to shock impact.
- Stable performance ensures that changes over time are negligible.
- Magnetic circuit reduces the effects of external magnetic fields.
- Superior temperature compensation circuit reduces external temperature effects.
Specifications - Model 201310
| Max. Scale Value | 20/50/100/200 mA |
|---|---|
| Approximate Internal Resistance and Consumed Power | 0.4/0.3/0.2/0.3 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 0.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 85°) |
| Operating Frequency Range | 45 ~ 65 Hz |
| Linemax | 250V |
| Scale Divisions | 100 divisions |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 195 x 170 x 87 mm |
| Approx. External Weight | 1.7 kg |
| Optional Accessories | 2291 01 Carrying case for 2013 2292 01 Carrying case for 2014 |
Features:
- Taut-band suspension system eliminates friction and provides good resistance to shock impact.
- Stable performance ensures that changes over time are negligible.
- Magnetic circuit reduces the effects of external magnetic fields.
- Superior temperature compensation circuit reduces external temperature effects.
Specifications - Model 201311
| Max. Scale Value | 0.1/0.2/0.5/1 A |
|---|---|
| Approximate Internal Resistance and Consumed Power | 0.2/0.3/0.4/.5 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 0.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 85°) |
| Operating Frequency Range | 45 ~ 65 Hz |
| Linemax | 250V |
| Scale Divisions | 100 divisions |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 195 x 170 x 87 mm |
| Approx. External Weight | 1.7 kg |
| Optional Accessories | 2291 01 Carrying case for 2013 2292 01 Carrying case for 2014 |
Features:
- Taut-band suspension system eliminates friction and provides good resistance to shock impact.
- Stable performance ensures that changes over time are negligible.
- Magnetic circuit reduces the effects of external magnetic fields.
- Superior temperature compensation circuit reduces external temperature effects.
Specifications - Model 201312
| Max. Scale Value | 0.5/1/2/5 A |
|---|---|
| Approximate Internal Resistance and Consumed Power | 0.7/0.6/0.5/0.3 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 0.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 85°) |
| Operating Frequency Range | 45 ~ 65 Hz |
| Linemax | 250V |
| Scale Divisions | 100 divisions |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 195 x 170 x 87 mm |
| Approx. External Weight | 1.7 kg |
| Optional Accessories | 2291 01 Carrying case for 2013 2292 01 Carrying case for 2014 |
Features:
- Taut-band suspension system eliminates friction and provides good resistance to shock impact.
- Stable performance ensures that changes over time are negligible.
- Magnetic circuit reduces the effects of external magnetic fields.
- Superior temperature compensation circuit reduces external temperature effects.
Specifications - Model 201313
| Max. Scale Value | 2/5/10/20 A |
|---|---|
| Approximate Internal Resistance and Consumed Power | 0.5/0.3/0.6/0.9 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 0.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 85°) |
| Operating Frequency Range | 45 ~ 65 Hz |
| Linemax | 250V |
| Scale Divisions | 100 divisions |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 195 x 170 x 87 mm |
| Approx. External Weight | 1.7 kg |
| Optional Accessories | 2291 01 Carrying case for 2013 2292 01 Carrying case for 2014 |
Features:
- Taut-band suspension system eliminates friction and provides good resistance to shock impact.
- Stable performance ensures that changes over time are negligible.
- Magnetic circuit reduces the effects of external magnetic fields.
- Superior temperature compensation circuit reduces external temperature effects.
Specifications - Model 201314
| Max. Scale Value | 10/20/50/100 A |
|---|---|
| Approximate Internal Resistance and Consumed Power | 0.6/0.9/1.7/2.7 |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 0.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 85°) |
| Operating Frequency Range | 45 ~ 65 Hz |
| Linemax | 250V |
| Scale Divisions | 100 divisions |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 195 x 170 x 87 mm |
| Approx. External Weight | 1.7 kg |
| Optional Accessories | 2291 01 Carrying case for 2013 2292 01 Carrying case for 2014 |
Features:
- Taut-band suspension system eliminates friction and provides good resistance to shock impact.
- Stable performance ensures that changes over time are negligible.
- Magnetic circuit reduces the effects of external magnetic fields.
- Superior temperature compensation circuit reduces external temperature effects.
Specifications - Model 201315
| Max. Scale Value | 15/30 V |
|---|---|
| Approximate Internal Resistance and Consumed Power | 3.8 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 0.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 85°) |
| Operating Frequency Range | 45 ~ 65 Hz |
| Linemax | 250V |
| Scale Divisions | 150 divisions |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 195 x 170 x 87 mm |
| Approx. External Weight | 1.7 kg |
| Optional Accessories | 2291 01 Carrying case for 2013 2292 01 Carrying case for 2014 |
Features:
- Taut-band suspension system eliminates friction and provides good resistance to shock impact.
- Stable performance ensures that changes over time are negligible.
- Magnetic circuit reduces the effects of external magnetic fields.
- Superior temperature compensation circuit reduces external temperature effects.
Specifications - Model 201316
| Max. Scale Value | 30/75 V |
|---|---|
| Approximate Internal Resistance and Consumed Power | 3.8 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 0.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 85°) |
| Operating Frequency Range | 45 ~ 65 Hz |
| Linemax | 250V |
| Scale Divisions | 150 divisions |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 195 x 170 x 87 mm |
| Approx. External Weight | 1.7 kg |
| Optional Accessories | 2291 01 Carrying case for 2013 2292 01 Carrying case for 2014 |
Features:
- Taut-band suspension system eliminates friction and provides good resistance to shock impact.
- Stable performance ensures that changes over time are negligible.
- Magnetic circuit reduces the effects of external magnetic fields.
- Superior temperature compensation circuit reduces external temperature effects.
Specifications - Model 201317
| Max. Scale Value | 75/150 V |
|---|---|
| Approximate Internal Resistance and Consumed Power | 3.8 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 0.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 85°) |
| Operating Frequency Range | 45 ~ 65 Hz |
| Linemax | 250V |
| Scale Divisions | 150 divisions |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 195 x 170 x 87 mm |
| Approx. External Weight | 1.7 kg |
| Optional Accessories | 2291 01 Carrying case for 2013 2292 01 Carrying case for 2014 |
Features:
- Taut-band suspension system eliminates friction and provides good resistance to shock impact.
- Stable performance ensures that changes over time are negligible.
- Magnetic circuit reduces the effects of external magnetic fields.
- Superior temperature compensation circuit reduces external temperature effects.
Specifications - Model 201318
| Max. Scale Value | 150/300 V |
|---|---|
| Approximate Internal Resistance and Consumed Power | 3.8 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 0.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 85°) |
| Operating Frequency Range | 45 ~ 65 Hz |
| Linemax | 250V |
| Scale Divisions | 150 divisions |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 195 x 170 x 87 mm |
| Approx. External Weight | 1.7 kg |
| Optional Accessories | 2291 01 Carrying case for 2013 2292 01 Carrying case for 2014 |
Features:
- Taut-band suspension system eliminates friction and provides good resistance to shock impact.
- Stable performance ensures that changes over time are negligible.
- Magnetic circuit reduces the effects of external magnetic fields.
- Superior temperature compensation circuit reduces external temperature effects.
Specifications - Model 201319
| Max. Scale Value | 300/750 V |
|---|---|
| Approximate Internal Resistance and Consumed Power | 3.8 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 0.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 85°) |
| Operating Frequency Range | 45 ~ 65 Hz |
| Linemax | 250V |
| Scale Divisions | 150 divisions |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 195 x 170 x 87 mm |
| Approx. External Weight | 1.7 kg |
| Optional Accessories | 2291 01 Carrying case for 2013 2292 01 Carrying case for 2014 |
Features:
- Taut-band suspension system eliminates friction and provides good resistance to shock impact.
- Stable performance ensures that changes over time are negligible.
- Magnetic circuit reduces the effects of external magnetic fields.
- Superior temperature compensation circuit reduces external temperature effects.
Specifications - Model 201320
| Max. Scale Value | (5 A) |
|---|---|
| Approximate Internal Resistance and Consumed Power | 0.2 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 0.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 85°) |
| Operating Frequency Range | 45 ~ 65 Hz |
| Linemax | 250V |
| Scale Divisions | 100/150 divisions |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 195 x 170 x 87 mm |
| Approx. External Weight | 1.7 kg |
| Optional Accessories | 2291 01 Carrying case for 2013 2292 01 Carrying case for 2014 |
Features:
- Taut-band suspension system eliminates friction and provides good resistance to shock impact.
- Stable performance ensures that changes over time are negligible.
- Magnetic circuit reduces the effects of external magnetic fields.
- Superior temperature compensation circuit reduces external temperature effects.
Specifications - Model 201321
| Max. Scale Value | (150 V) |
|---|---|
| Approximate Internal Resistance and Consumed Power | 3.8 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 0.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 85°) |
| Operating Frequency Range | 45 ~ 65 Hz |
| Linemax | 250V |
| Scale Divisions | 100/150 divisions |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 195 x 170 x 87 mm |
| Approx. External Weight | 1.7 kg |
| Optional Accessories | 2291 01 Carrying case for 2013 2292 01 Carrying case for 2014 |
Features:
- Taut-band suspension system eliminates friction and provides good resistance to shock impact.
- Stable performance ensures that changes over time are negligible.
- Magnetic circuit reduces the effects of external magnetic fields.
- Superior temperature compensation circuit reduces external temperature effects.
Specifications - Model 201322
| Max. Scale Value | 500A (500 AT) |
|---|---|
| Approximate Internal Resistance and Consumed Power | Used in combination with Current transformer 2244 (accessory) |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 0.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 85°) |
| Operating Frequency Range | 45 ~ 65 Hz |
| Linemax | 250V |
| Scale Divisions | 100/150 divisions |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 195 x 170 x 87 mm |
| Approx. External Weight | 1.7 kg |
| Optional Accessories | 2291 01 Carrying case for 2013 2292 01 Carrying case for 2014 |
Features:
- Taut-band suspension system eliminates friction and provides good resistance to shock impact.
- Stable performance ensures that changes over time are negligible.
- Magnetic circuit reduces the effects of external magnetic fields.
- Superior temperature compensation circuit reduces external temperature effects.
Specifications - Model 201323
| Max. Scale Value | 0.5/1/2/5 |
|---|---|
| Approximate Internal Resistance and Consumed Power | 1.2 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 0.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 85°) |
| Operating Frequency Range | 45 ~ 65 Hz |
| Linemax | 250V |
| Scale Divisions | 100 divisions |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 195 x 170 x 87 mm |
| Approx. External Weight | 1.7 kg |
| Optional Accessories | 2291 01 Carrying case for 2013 2292 01 Carrying case for 2014 |
Features:
- Taut-band suspension system eliminates friction and provides good resistance to shock impact.
- Stable performance ensures that changes over time are negligible.
- Magnetic circuit reduces the effects of external magnetic fields.
- Superior temperature compensation circuit reduces external temperature effects.
Specifications - Model 201324
| Max. Scale Value | 2/5/10/20 A |
|---|---|
| Approximate Internal Resistance and Consumed Power | 1.2 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 0.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 85°) |
| Operating Frequency Range | 45 ~ 65 Hz |
| Linemax | 250V |
| Scale Divisions | 100 divisions |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 195 x 170 x 87 mm |
| Approx. External Weight | 1.7 kg |
| Optional Accessories | 2291 01 Carrying case for 2013 2292 01 Carrying case for 2014 |
Features:
- Taut-band suspension system eliminates friction and provides good resistance to shock impact.
- Stable performance ensures that changes over time are negligible.
- Magnetic circuit reduces the effects of external magnetic fields.
- Superior temperature compensation circuit reduces external temperature effects.
Specifications - Model 201325
| Max. Scale Value | 10/20/50/100 A |
|---|---|
| Approximate Internal Resistance and Consumed Power | 3.5 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 0.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 85°) |
| Operating Frequency Range | 45 ~ 65 Hz |
| Linemax | 250V |
| Scale Divisions | 100 divisions |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 195 x 170 x 87 mm |
| Approx. External Weight | 1.7 kg |
| Optional Accessories | 2291 01 Carrying case for 2013 2292 01 Carrying case for 2014 |
Features:
- Taut-band suspension system eliminates friction and provides good resistance to shock impact.
- Stable performance ensures that changes over time are negligible.
- Magnetic circuit reduces the effects of external magnetic fields.
- Superior temperature compensation circuit reduces external temperature effects.
Specifications - Model 201326
| Max. Scale Value | 75/150 V |
|---|---|
| Approximate Internal Resistance and Consumed Power | 3.8 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 0.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 85°) |
| Operating Frequency Range | 45 ~ 65 Hz |
| Linemax | 250V |
| Scale Divisions | 150 divisions |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 195 x 170 x 87 mm |
| Approx. External Weight | 1.7 kg |
| Optional Accessories | 2291 01 Carrying case for 2013 2292 01 Carrying case for 2014 |
Features:
- Taut-band suspension system eliminates friction and provides good resistance to shock impact.
- Stable performance ensures that changes over time are negligible.
- Magnetic circuit reduces the effects of external magnetic fields.
- Superior temperature compensation circuit reduces external temperature effects.
Specifications - Model 201327
| Max. Scale Value | 150/300 V |
|---|---|
| Approximate Internal Resistance and Consumed Power | 3.8 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 0.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 85°) |
| Operating Frequency Range | 45 ~ 65 Hz |
| Linemax | 250V |
| Scale Divisions | 150 divisions |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 195 x 170 x 87 mm |
| Approx. External Weight | 1.7 kg |
| Optional Accessories | 2291 01 Carrying case for 2013 2292 01 Carrying case for 2014 |
Features:
- Taut-band suspension system eliminates friction and provides good resistance to shock impact.
- Stable performance ensures that changes over time are negligible.
- Magnetic circuit reduces the effects of external magnetic fields.
- Superior temperature compensation circuit reduces external temperature effects.
Specifications - Model 201400
| Max. Scale Value | 30/75/15/300/750V 0.15/0.3/0.75/1.5/3/7.5/15/30A |
|---|---|
| Approximate Internal Resistance and Consumed Power | Current measurement range 7.5 A or less 0.7 VA Each voltage measurement range 4.5 VA |
| Operating Principle | Moving iron type |
| Class | JIS C 1102: 1997 Class 0.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 85°) |
| Operating Frequency Range | 45 ~ 65 Hz |
| Linemax | 250V |
| Scale Divisions | 150 divisions |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 260 x 180 x 115 mm |
| Approx. External Weight | 4.2 kg |
| Optional Accessories | 2291 01 Carrying case for 2013 2292 01 Carrying case for 2014 |
Features:
- Taut-band suspension system eliminates friction and provides good resistance to shock impact.
- Stable performance ensures that changes over time are negligible.
- Magnetic circuit reduces the effects of external magnetic fields.
- Superior temperature compensation circuit reduces external temperature effects.
| Model | Description |
|---|---|
| 2013 01 | 20/100 mA, 0.3/0.2 VA, 100 divisions, 195 x 170 x 87 mm, 1.7 kg |
| 2013 02 | 50/250 mA, 0.5/0.5 VA, 100/125 divisions, 195 x 170 x 87 mm, 1.7 kg |
| 2013 03 | 100/500 mA, 0.5/0.5 VA, 100 divisions, 195 x 170 x 87 mm, 1.7 kg |
| 2013 04 | 0.2/1 A, 0.4/0.4 VA, 100 divisions, 195 x 170 x 87 mm, 1.7 kg |
| 2013 05 | 0.5/2.5 A, 0.5/0.5 VA, 100/125 divisions, 195 x 170 x 87 mm, 1.7 kg |
| 2013 06 | 1/5 A, 0.6/0.6 VA, 100 divisions, 195 x 170 x 87 mm, 1.7 kg |
| 2013 07 | 2/10 A, 0.7/0.7 VA, 100 divisions, 195 x 170 x 87 mm, 1.7 kg |
| 2013 08 | 5/25 A, 1/1 VA, 100/125 divisions, 195 x 170 x 87 mm, 1.7 kg |
| 2013 09 | 10/50 A, 1.2/1.8 VA, 100 divisions, 195 x 170 x 87 mm, 1.7 kg |
| 2013 10 | 20/50/100/200 mA, 0.4/0.3/0.2/0.3 VA, 100 divisions, 195 x 170 x 87 mm, 1.7 kg |
| 2013 11 | 0.1/0.2/0.5/1 A, 0.2/0.3/0.4/.5 VA, 100 divisions, 195 x 170 x 87 mm, 1.7 kg |
| 2013 12 | 0.5/1/2/5 A, 0.7/0.6/0.5/0.3 VA, 100 divisions, 195 x 170 x 87 mm, 1.7 kg |
| 2013 13 | 2/5/10/20 A, 0.5/0.3/0.6/0.9 VA, 100 divisions, 195 x 170 x 87 mm, 1.7 kg |
| 2013 14 | 10/20/50/100 A, 0.6/0.9/1.7/2.7, 100 divisions, 195 x 170 x 87 mm, 1.7 kg |
| 2013 15 | 15/30 V, 3.8 VA, 150 divisions, 195 x 170 x 87 mm, 1.7 kg |
| 2013 16 | 30/75 V, 3.8 VA, 150 divisions, 195 x 170 x 87 mm, 1.7 kg |
| 2013 17 | 75/150 V, 3.8 VA, 150 divisions, 195 x 170 x 87 mm, 1.7 kg |
| 2013 18 | 150/300 V, 3.8 VA, 150 divisions, 195 x 170 x 87 mm, 1.7 kg |
| 2013 19 | 300/750 V, 3.8 VA, 150 divisions, 195 x 170 x 87 mm, 1.7 kg |
| 2013 20 | (5 A), 0.2 VA, 100/150 divisions, 195 x 170 x 87 mm, 1.7 kg |
| 2013 21 | (150 V), 3.8 VA, 100/150 divisions, 195 x 170 x 87 mm, 1.7 kg |
| 2013 22 | 500A (500 AT), Used in combination with Current transformer 2244 (accessory), 100/150 divisions, 195 x 170 x 87 mm, 1.7 kg |
| 2013 23 | 0.5/1/2/5, 1.2 VA, 100 divisions, 195 x 170 x 87 mm, 1.7 kg |
| 2013 24 | 2/5/10/20 A, 1.2 VA, 100 divisions, 195 x 170 x 87 mm, 1.7 kg |
| 2013 25 | 10/20/50/100 A, 3.5 VA, 100 divisions, 195 x 170 x 87 mm, 1.7 kg |
| 2013 26 | 75/150 V, 3.8 VA, 150 divisions, 195 x 170 x 87 mm, 1.7 kg |
| 2013 27 | 150/300 V, 3.8 VA, 150 divisions, 195 x 170 x 87 mm, 1.7 kg |
| 2014 00 | 30/75/15/300/750V 0.15/0.3/0.75/1.5/3/7.5/15/30A, Current measurement range 7.5 A or less 0.7 VA Each voltage measurement range 4.5 VA, 150 divisions, 260 x 180 x 115 mm, 4.2 kg |
