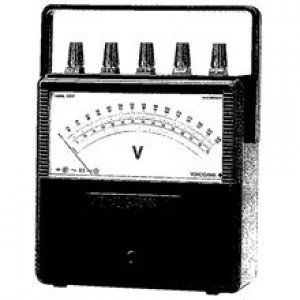

Model 2017 is a rectifier type, Class 0.5 voltmeter designed for the audio frequency range.
| Operating Principle | Rectifier type |
| Class | JIS C 1102 : 1997 Class 0.5 |
| Operating Position | Horizontal |
| Scale Length | Approximately 135 mm (Deflection Angle: 85°) |
| Scale Divisions | 150 |
| Max. Scale Value | 30/75/150/300 V |
| Rated Accuracy | ± 0.5% between 45 Hz and 10kHz |
| Approximate Consumed Current | 1 mV (1000 Ω/V) |
| Operating Temperature Range | 0 ~ 40 ºC |
| Operating Humidity Range | 30 ~ 75% RH |
| Storage Temperature Range | -10 ~ 50 ºC |
| Storage Humidity Range | 25 ~ 80% RH |
| Approx. External Dimension | 197 x 181 x 92 mm |
| Approx. External Weight | 1.8 kg |
| Optional Accessories | 2291 01 Carrying case |
| Features |
|
