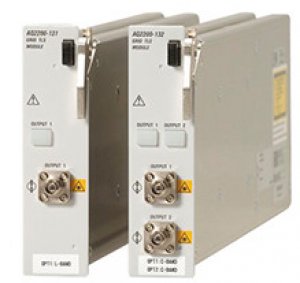

The AQ2200-131 and AQ2200-132 are single and dual channel tunable light source modules for mounting into the AQ2200 series multi application test system. The output wavelength can be conveniently set to the predefined DWDM grid channels.
 |
Reduced energy, emission of CO2, NOX and SOX about 10% compared to the previous model. |
Flexible Frequency/ Wavelength Selection
- Frequency (Wavelength): C-band, L-band
High-Stability Optical Output and High SMSR
- High-stability output level: ± 0.03dB
- High-stability frequency(wavelength): ± 0.3GHz (± 2.4pm)
- Output level: +9dBm or more
- High SMSR: 45dB
Available with two laser types to suit test application
Standard Type
- Tunable to one of 100 G, 50 G, or 25 GHz grids
- Wide line width: 3 MHz
- Ideal for optical fiber amplifier measurement system
Advanced Type
- Tunable to arbitrary grid frequency with min. 100 MHz steps
- Fine-tuning capability with min. 1 MHz steps (at grid setting mode)
- Narrow-line width: 100 KHz
- SBS suppression
- Ideal for digital cohereny ststem
Examples of Measurement Application
- Optical fiber amplifier measurement system
SPECIFICATIONS
AQ2200-131/132
| Item | Product specifications | ||||
|---|---|---|---|---|---|
| Number of Channels |
AQ2200-131: 1, AQ2200-132: 2
|
||||
| Device Type |
Standard Type
|
Advanced Type
|
|||
| Frequency Band |
C-band
|
L-band
|
C-band
|
L-band
|
|
| Frequency (Wavelength) range |
196.10 to 191.70 THz
(1528.77 to 1563.86 nm)
|
190.90 to 186.50 THz
(1570.42 to 1607.47 nm)
|
196.25 to 191.50 THz
(1527.60 to 1565.50 nm)
|
190.95 to 186.35 THz
(1570.01 to 1608.76 nm)
|
|
| Grid Spacing |
100 GHz, 50 GHz
|
100 GHz, 50 GHz,
25 GHz and Manual (min. 0.1 GHz) |
|||
| Frequency (Wavelength) setting resolution |
---
|
0.1 GHz (0.8 pm@1550 nm)
|
0.1 GHz (0.8 pm@1590 nm)
|
||
| Frequency (Wavelength) fine turning range |
---
|
±6 GHz (typ.)(±48 pm@1550 nm)
|
±6 GHz (typ.)(±51 pm@1590 nm)
|
||
| Frequency (Wavelength) fine turning resolution |
---
|
1 MHz (typ.)(8 fm@1550 nm)
|
1 MHz (typ.)(8 fm@1590 nm)
|
||
| Absolute frequency (wavelength) accuracy |
±2.5 GHz (±20 pm@1550 nm)
|
±2.5 GHz (±21 pm@1590 nm
|
±2.5 GHz (±20 pm@1550 nm)
|
±2.5 GHz (±21 pm@1590 nm)
|
|
| Frequency (Wavelength) stability 24hours |
±0.3 GHz (typ.)(2.4 pm@1550 nm)
|
±0.3 GHz (typ.)(2.5 pm@1590 nm)
|
±0.3 GHz (typ.)(2.4 pm@1550 nm)
|
±0.3 GHz (typ.)(2.5 pm@1590 nm)
|
|
| Frequency (Wavelength) tuning time |
30 sec. or less
|
||||
| Optical output level |
+12.0 dBm or more
|
+9.0 dBm or more
|
+12.5 dBm or more
|
||
| Attenuation Range |
4 dB (resolution: 0.1 dB(typ.))
|
6 dB (resolution: 0.01 dB(typ.))
|
|||
| Output level stability 24 hours |
±0.03 dB (typ.)
|
||||
| Spectral linewidth |
3 MHz (typ.)
|
100 kHz (typ.)
|
|||
| SMSR |
45 dB (typ.)
|
||||
| RIN |
-135 dB/Hz (typ.)
|
-130 dB/Hz (typ.)
|
-145 dB/Hz (typ.)
|
||
| Fiber type |
PANDA PMF, Slow axis, in line with connector key
|
||||
| Optical connector |
Select any of FC/PC or FC/Angled PC
|
||||
| Dither function | SBS suppression dither frequency |
---
|
20.8 kHz
|
||
| SBS suppression FM modulation range |
---
|
0 to 1000 MHz
|
|||
