Features:
※ Built-in Withstanding/Insulation Tester
※ 500VA Test Capacity
※ Zero Turn on Operating Switch
※ Automatic NG Indicator of Alarm Lamp and Buzzer
※ Lower Set for NO-Contact Judge
※ Digital Cut-Off Current Set
※ Test on and Result Output Signal
※ Auto W-I and I-W Test Procedure
※ Optional : Remote Control Box GHT-106R
Description:
500VA, Withstanding Voltage(AC)/Insulation Tester.

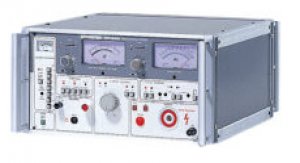

The GPI-625 is a simple 2-in-1 (AC Withstanding / Insulation Resistance) analog safety tester geared toward accurate hazard-free automatic testing. Auto testing can be set to run withstanding and insulation resistance testing in any preferred order. The optional GHT-106R remote controller can be used to remotely run the timer and tests. The GPI-625 has dedicated input/output terminals and a current monitor terminal for external device monitoring. Equipped with a large 500VA AC capacity, the GPI-625 is ideal in a test & analysis environment for testing electronic equipment, components, and insulation materials.
Specification:
| AC HI-POT | |
| Voltage | 0 ~ 2.5kV, 0 ~ 5kV 2 range AC line waveform |
| Voltage Regulation | 20% |
| Max Current | 100mA |
| REFERENCE VALUE | |
| Setting | 0.5, 1, 2, 4, 8, 10, 100mA 7 ranges combination of 0.5mA ~ 25.5mA |
| Low Reference | 0 to 1/2 of reference value, continuously variable |
| Meter | 2.5kV, 5kV two ranges, ± 3% of full scale |
| JUDGEMENT | |
| Description | Window Comparator System |
| Accuracy | ±5% of high reference value ±20% of low reference value (1/2 of reference value) |
| CURRENT MONITER METER | |
| Description | ±5% of full scale |
| INSULATION RESISTANCE | |
| DC Voltage | 500V/1000V |
| Resistance Range | 1MΩ ~ 2000MΩ |
| Resistance Accuracy | 5% ~ 10% depends on range |
| JUDGEMENT | |
| Description | Window Comparator System |
| Accuracy | ±10% ~ ±20% depends on range |
| TIMER | |
| Setting | 0.5s ~ 10min |
| Accuracy | ±10% of full scale |
| GENERAL | |
| Type of Test | AUTO W-I, AUTO I-W, MANUAL-W, MANUAL-I |
| Remote Control | Test, Reset, Timer On-Off control |
| Output Signal | Test ON, GOOD, NG and Read signal (The rating of the contact signal are 110VAC 1A or 30VDC 1A) |
| AC Outlet | Use only Buzzer and warning light, the output voltage depend on the line voltage and the current is 1A |
| Test Mode | Double action, good hold, momentary, NG alarm |
| POWER SOURCE | |
| AC 120V ± 10%, 50/60 Hz AC 220V/240V order made |
|
| DIMENSIONS & WEIGHT | |
| 430(W) x 223(H) x 510(D) mm Approx. 28kg |
|
Accessories:
User manual x1, Power cord x1, GHT-105 x1
OPTION
GHT-106R Remote Controller
Ordering Information:
GPI-625 AC 500VA AC Withstanding Voltage / Insulation Analog Safety Tester
