Features:
※ Test Frequency 20Hz ~ 1 MHz
※ Large LCD Display
※ 6 digit Measurement Resolution
※ 0.1% Basic Measurement Accuracy
※ Multiple Step Mode
※ DC Resistance Measurement
※ Comprehensive Measurement Functions
※ Monitoring of DUT Voltage and Current
※ Pass/Fail Test
※ Standard Interface : RS-232 & GPIB
※ Optional : Graph Mode
Description:
20Hz-1MHz, LCD Display, 0.1% Basic Accuracy.

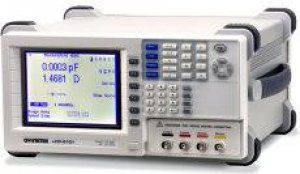

The LCR-8101 1MHz precision LCR meter provides accuracy and versatility for a wide range of component measurements, even including DC resistance measurement and Voltage/Current monitoring. High resolution and accuracy provide precise measurement results which help reconstruct component characteristics. The Multi-Step function allows customized measurements with Pass/Fail tests all according to a user’s requirements. Parameters and limitations are defined separately for each program step. GPIB and RS-232C interface are installed as standard features for controlling the instrument and reading the measurement results. The Optional Graph Mode can display component characteristics in graphs over a wide frequency range or for different driver voltages. The rich features of the LCR-8101 lighten your measurement workload at a very competitive price.
Specification:
| TEST FREQUENCY | |
| 20Hz ~ 1MHz, 5 Digits, ±0.005% | |
| INPUT IMPEDANCE | |
| 100Ω | |
| BASIC ACCURACY | |
| ±0.1% (R, Z, X, G, Y, B, L, C) | |
| TEST SPEED | |
| AC | DC |
| MAX: 75mS | MAX: 30mS |
| FAST: 150mS | FAST: 60mS |
| MEDIUM: 450mS | MEDIUM: 120mS |
| SLOW: 600mS | SLOW: 900mS |
| TEST SIGNAL LEVELS | |
| 10mV~2Vrms, 1mV/Step, 2%±5mV | |
| SHORT CIRCUIT CURRENT | |
| Max. 20mA | |
| MEASUREMENT RANGES | |
| R, Z, X | 0.1mΩ ~ 100MΩ |
| G, Y, B | 10nS ~ 1000S |
| L | 0.1nH ~ 100kH |
| C | 0.01pF ~ 1F |
| D | 0.0001 ~ 9.9999 |
| Q | 0.1 ~ 9999.9 |
| θ | -180° ~ +180° |
| Rdc | 0.1mΩ ~ 100MΩ |
| MEASUREMENT PARAMETERS | |
| Impedance (Z), Phase Angle (θ), Inductance (L), Capacitance (C), AC Resistance (Rac), Quality Factor (Q), Dissipation Factor (D), Admittance (Y), Conductance (G), Reactance (X), Susceptance (B), DC Resistance (Rdc) |
|
| SERIES OR PARALLEL EQUIVALENT CIRCUIT | |
| C + R, C + D, C + Q, L + R, L + Q, L + D | |
| SERIES EQUIVALENT CIRCUIT ONLY | |
| X + R, X + D, X + Q | |
| PARALLEL EQUIVALENT CIRCUIT ONLY | |
| C + G, B + G, B + D, B + Q, B + R, L + G | |
| POLAR FORM | |
| Z + Phase Angle, Y + Phase Angle | |
| LCD DISPLAY | |
| 320 x 240 DOT-MATRIX | |
| INTERFACE | |
| RS-232, GPIB | |
| POWER SOURCE | |
| AC 115V±10% / 230V±10 (Selectable), 50/60Hz | |
| DIMENSIONS & WEIGHT | |
| 330(W) x 170(H) x 340(D)mm, Approx. 5kg | |
Accessories:
User manual x1, Power cord x1, LCR-06A x1
OPTION
Opt.01 Graph Mode (Factory Installed)
OPTIONAL ACCESSORIES
LCR-05 Test Fixture for Axial & Radial Leaded Components
LCR-06A Kelvin Clip Test Lead
LCR-07 Test Fixture, Two-Wire with Alligator Clips
LCR-08 Test Fixture (Tweezers) for SMD / Chip Components
LCR-09 Test Fixture for SMD / Chip Components
LCR-13 Test Fixture for SMD / Chip Components
GRA-404 Rack Adapter Panel, Rack Mounting (19", 4U)
GTL-232 RS-232 Cable, 9-pin Female to 9-pin, null Modem for Computer
GTC-001 Instrument Cart
GTC-002 Instrument Cart
Ordering Information:
LCR-8101 1MHz Precision LCR
ACCESSORIES :
User manual x1, Power cord x1, LCR-06A x1
OPTION
Opt.01 Graph Mode (Factory Installed)
OPTIONAL ACCESSORIES
LCR-05 Test Fixture for Axial & Radial Leaded Components
LCR-06A Kelvin Clip Test Lead
LCR-07 Test Fixture, Two-Wire with Alligator Clips
LCR-08 Test Fixture (Tweezers) for SMD / Chip Components
LCR-09 Test Fixture for SMD / Chip Components
LCR-13 Test Fixture for SMD / Chip Components
GRA-404 Rack Adapter Panel, Rack Mounting (19", 4U)
GTL-232 RS-232 Cable, 9-pin Female to 9-pin, null Modem for Computer
GTC-001 Instrument Cart
GTC-002 Instrument Cart
