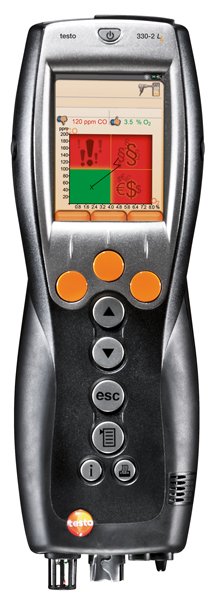

Thanks to the new instrument functions, the Testo flue gas analyzers of the new testo 330-LL series now offer you even more professional and reliable support. These are the main features: • High-resolution colour display for the graphic representation of your measurement data • Extended measurement menus – such as gas pipe testing – for a comprehensive analysis of your heating system • Logger function for easy long-term recording of the measurement curve
• Graphic processing of measurement data
• Instrument diagnosis function uses easy „traffic light’’ presentation to enable comprehensive instrument diagnosis
• Pressure measurement up to 300 mbar
• User-defined fuels
• TÜV-tested according to 1. BImSchV / EN 50379 Part 2 for O2, °C, hPa and CO with H2-compensation
• Powerful memory management: 500,000 readings
• IrDa/ Bluetooth interface for data transfer to Pocket-PC / laptop / printer
• USB interface for data readout to a PC software
• ZIV (Central Guild Association) driver for all standard industry software packages
• Instrument diagnosis function uses easy „traffic light’’ presentation to enable comprehensive instrument diagnosis
• Pressure measurement up to 300 mbar
• User-defined fuels
• TÜV-tested according to 1. BImSchV / EN 50379 Part 2 for O2, °C, hPa and CO with H2-compensation
• Powerful memory management: 500,000 readings
• IrDa/ Bluetooth interface for data transfer to Pocket-PC / laptop / printer
• USB interface for data readout to a PC software
• ZIV (Central Guild Association) driver for all standard industry software packages
| Measuring range |
|
|
Adjustment time t90 |
|
|
Temperature |
-40 to +1200 °C |
± 0.5 °C (0.0 to +100.0 °C) |
0,1 °C (-40 to +999,9 °C) 1 °C (remaining meas. range) | |
|
Draught measurement |
-9.99 to +40 hPa |
± 0.03 hPa (+0,61 to +500 hPa) ±1.5% of reading (+3.01 to +40.00 hPa) (the greater value applies) |
0.01 hPa | |
|
Pressure measurement |
0 to 300 hPa |
±0.5 hPa (0,0 - 50.0 hPa) ±1% of reading (50.1 to 100.0 hPa) ±1.5% of m.v. (remaining meas. range) |
0.1 hPa | |
|
O2measurement |
0 to 21 vol. % | ±0.2 Vol.% | 0.1 vol. % | < 20 sec |
|
CCO measurement (without H2 compensation) |
0 to 4000 ppm |
±20 ppm (0 - 400 ppm) ±5% of reading (401 to 2000 ppm) ±10% of reading (2001 to 4000 ppm) |
1 ppm | < 60 sec |
|
CO measurement |
0 to 8000 ppm Display range 8000 to 30,000 ppm (automatic dilution) |
±10 ppm or ±10% of m.v. (0 to 200 ppm) ±20 ppm or ±5% of m.v. (201 to 2000 ppm) ±10% of reading (2001 to 8000 ppm) |
1 ppm | < 60 sec |
|
Only testo 330-2 LL CO measurement (H2compensated) solid fuel measurement |
0 to 30,000 ppm |
±100 ppm (0 to 1000 ppm) ±10% of reading (1001 to 30,000 ppm) |
1 ppm | |
|
Efficiency testing (Eta) |
0 to 120% | 0.1 % | ||
|
Exhaust gas loss |
0 to 99.9% | 0.1 % | ||
|
CO 2 -determination |
Display area 0 to CO 2 max | ±0.2 Vol.% | 0.1 vol.% | < 40 sec |
|
Option CO low measurement |
0 to 500 ppm |
±5 ppm (0 - 100 ppm) ±5% of reading (101 to 2000 ppm) ±10% of reading (2001 to 3000 ppm) |
0.1 ppm | < 30 sec |
|
Option NO measurement |
0 to 3000 ppm |
±5 ppm (0 - 100 ppm) ±5% of reading (101 to 2000 ppm) ±10% of reading (2001 to 3000 ppm) |
1 ppm | < 30 sec |
|
Ambient CO measurement |
0 to 500 ppm |
±5 ppm (0 to 100 ppm) ±5% of m.v. (>100 ppm) |
1 ppm | approx. 35 sec |
|
Gas leak measurement for combustible gases (with gas leak detector probe) |
Display area 0 to 10,000 ppm CH 4 / C 3 H 8 |
Signal Optical display (LED) Audible alarm via buzzer |
< 2 sec | |
|
|
0 to 1 vol. % 0 to 10,000 ppm | ±(50 ppm ±2% of reading) (0 to 5000 ppm) | approx. 35 sec | |
|
NOlow |
0 to 300 ppm |
±2 ppm (0 - 39,9 ppm) ±5% of reading (40 to 300 ppm) |
0.1 ppm | < 30 sec |
|
General technical data |
||||
|
Storage temp. |
-20 to +50 °C | |||
|
Oper. temp. |
-5 to +45 °C | |||
|
Power supply |
Rech. batt. block 3.7 V / 2,6 Ah Mains unit 6 V / 1.2 A | |||
|
Memory |
500,000 readings | |||
|
Display |
Colour graphic display with 240 x 320 Pixel | |||
|
Weight |
600 g (excluding battery) | |||
|
Dimensions |
270 x 90 x 65 mm | |||
|
Warranty |
Instrument/probe/gas sensors (O2, CO) 48 months NO-, COlowsensor 24 months Thermocouple and rech. battery 12 months |
|||
 testo 310 |
 testo 320 |
 testo 330 LL |
|
|
Measurement parameters |
|||
|
O2 |
0 to 21 % | 0 to 21 % | 0 to 21 % |
|
CO |
0 to 4000 ppm | 0 to 4000 ppm | 0 to 4000 ppm |
|
Option: CO H2 compensated |
 |
0 to 8000 ppm | 0 to 8000 ppm |
|
COlow |
|
0 to 500 ppm | 0 to 500 ppm |
|
NO |
|
|
0 to 3000 ppm |
|
NOlow |
|
|
0 to 300 ppm |
|
Differential pressure |
0 to 40 hPa | 0 to 300 hPa | 0 to 300 hPa |
|
Temperature |
0 to 400 °C | -40 to +1200 °C | -40 to +1200 °C |
|
Additional applications |
|||
|
Flow, system, static and jet pressure |
 |
|
|
|
Gas leak probe |
|
|
|
|
Probe for ambient |
|
|
|
|
Solid fuel measurement |
|
|
|
|
Tightness test |
|
|
|
|
Instrument technology |
|||
|
Display |
2-line segment | Colour display | Colour display |
|
Communication |
IR | IRDA / USB / BT | IRDA / USB / BT |
|
Printer integration |
|
|
|
|
Sensor diagnosis |
|
|
|
|
Connection to PC or laptop |
|
|
|
|
Sensor exchange by user |
|
|
|
|
Measurement report memory |
|
500 | 500.000 |
|
Warranty |
2 years | 2 years | 4 years |
