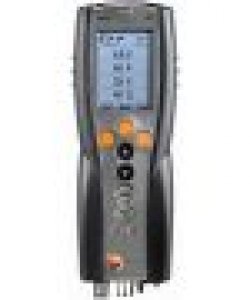

testo 340 flue gas analyzer, incl. rechargeable battery, calibration protocol and carrying strap, equipped with O2 sensor, integrated flow/differential pressure measurement
-
measurement range extension for Single dilution slot or optional for all sensors
-
pressure-/ flow-measurement standard in every testo 340
-
automatic flow-controlled gas pump
-
18 standard fuels and additional 10 user-defined fuels – Fuel data is calculated using software easyEmission
Rising fuel costs for thermal systems highlight more and more the need for efficiency monitoring using emission measurements. A practical, easy-to-use emission analyzer for a variety of applications is therefore ideal.
-
The unique measuring range extension feature facilitates unlimited measurements even at high gas concentrations.
-
testo 340 is equipped with an O2 sensor as standard. 3 additional gas sensors can be individually configured at any time so your analyzer is optimally adapted to your measurement job.
-
Compact design combined with reliable engineering makes testo 340 the ideal analyzer for commissioning, service and maintenance work as well as measurements for monitoring purposes.
-
- Industrial burners
-
- Stationary industrial engines
-
- Gas turbines
-
- Thermal processes
-
TÜV approval / EN standard
-
- Accuracy approved for O2, CO2, CO, NO, NOlow, °C, hPa to EN 50379 standard, Part 2
-
- Approved sensor change (adjustment without test gas)
-
automatic flow-controlled gas pump
-
modular gas sampling probes
-
internal data logging
-
option: Data transfer and real-time-analyzer-control via Bluetooth® module and software easyEmission
-
18 fuels stored in the instrument as standard, more are user-specifically configurable with easyEmission
testo 340 must be equipped with a second gas sensor otherwise the analyzer cannot function. Max. 3 additional sensors can be fitted.
|
Gas sensor |
Measuring range |
Measuring range extension
Single dilution |
|
CO-sensor |
0... 10.000 ppm |
to 50.000 ppm |
|
COlow-sensor |
0... 500 ppm |
to 2.500 ppm |
|
NO-sensor |
0... 3.000 ppm |
to 15.000 ppm |
|
NOlow-sensor |
0... 300 ppm |
to 1.500 ppm |
|
NO2-sensor |
0... 500 ppm |
|
|
SO2-sensor |
0... 5.000 ppm |
to 25.000 ppm |
Technical Data testo 340
|
|
Measuring range |
Accuracy |
Resolution |
Response
time |
O2 measurement
|
0 to 25 Vol. % |
±0.2 Vol. % |
0.01 Vol.% |
t90< 20 sec |
CO measurement
(H2 compensated) |
0 to 10.000
ppm |
±10 ppm or ±10% of mv
(0 to 200 ppm)
±20 ppm or ±5% of mv
(201 to 2.000 ppm)
±10% of mv (2.001 to 10.000 ppm)
|
1 ppm |
t90< 40 sec |
COlow measurement
(H2 compensated) |
0 to 500 ppm |
±2 ppm (0 to 39.9 ppm)
±5% of mv (remaining range)X
x data corresponds to 20°C ambient temperature.
Additional temperature coefficient 0.25% of reading/K.
|
0.1 ppm |
t90< 40 sec |
|
NO-measurement |
0 to 3.000 ppm |
±5 ppm (0 to 99 ppm)
±5% of mv (100 to 1.999 ppm)
±10% of mv (2.000 to 3.000 ppm) |
1 ppm |
t90< 30 sec |
|
NOlow measurement |
0 to 300 ppm |
±2 ppm (0 to 39.9 ppm) ±5% of mv
(remaining range) |
0.1 ppm |
t90< 30 sec |
|
NO2 measurement* |
0 to 500 ppm |
±10 ppm (0 to 199 ppm)
±5% of mv (remaining range) |
0.1 ppm |
t90< 40 sec |
|
SO2 measurement* |
0 to 5.000 ppm |
±10 ppm (0 to 99 ppm)
±10% of mv (remaining range) |
1 ppm |
t90< 40 sec |
|
Temperature measurement
Fühlertyp Typ K
(NiCr-Ni)
|
-40 to +1.200°C |
±0.5 °C (0 to +99 °C)
±0.5 % of mv (remaining range) |
0.1 °C |
|
|
Draught measurement |
-40 to+40 hPa |
±0.03 hPa (-2.99 to +2.99 hPa)
±1.5 % of mv (remaining range) |
0.01 hPa |
|
Differential pressure
measurement |
-200 to +200 hPa |
±0.5 hPa (-49.9 to 49.9 hPa)
±1.5 % of mv (remaining range) |
0.1 hPa |
|
Absolute pressure
measurement |
600 to +1.150
hPa |
±10 hPa |
1 hPa |
|
|
Derived parameters
Efficiency
Flue gas loss
Flue gas dewpoint
|
0 to 120 %
0 to 99.9 %
0 to 99.9 °C
|
|
0.1 %
0.1 %
0.1 °C
|
|
|
CO2 measurement
(calculation from O2)
|
0 to CO2 max.
|
±0.2 Vol. %
|
0.1 Vol. %
|
Response time
t90 = ⟨ 40 s
|
*To avoid absorption, a maximum measurement duration of 2 hours should not be exceeded.
Measuring range extension
|
Single dilution, factor 5 (standard) |
CO measurement
(H2 compensated) |
Meas. range
Accuracy
Resolution
|
700 ppm to 50.000 ppm
±10 % of mv (additional error)
1 ppm
|
COlow measurement
(H2 compensated)) |
Meas. range
Accuracy
Resolution |
300 ppm to 2.500 ppm
±10 % of mv (additional error)
0.1 ppm |
|
NO-measurement |
Meas. range
Accuracy
Resolution |
500 ppm to 15.000 ppm
±10 % of mv (additional error)
1 ppm |
|
NOlow measurement |
Meas. range
Accuracy
Resolution |
150 ppm to 1.500 ppm
±10 % of mv (additional error)
0,1 ppm |
|
SO2 measurement |
Meas. range
Accuracy
Resolution |
500 ppm to 25.000 ppm
±10 % of mv (additional error)
1 ppm |
|
Dilution of all sensors, factor 2 (option, Part no. 0440 3350)
|
|
O2 measurement
With measuring range extension switched
on over all sensors:
|
Meas. range
Accuracy
Resolution |
0 to 25 vol.%
Accuracy: ±1 vol.% additional error (0 to 4.99 vol.%)
±0.5 vol.% additional error (5 to 25 vol.%)
Resolution: 0.01 vol.% |
CO-Messung
(H2-kompensiert) |
Meas. range
Accuracy
Resolution |
700 ppm to 20.000 ppm
±10 % of mv (additional error)
1 ppm |
CO measurement
(H2 compensated) |
Meas. range
Accuracy
Resolution |
300 ppm to 1.000 ppm
±10 % of mv (additional error)
0.1 ppm |
|
NO-measurement
|
Meas. range
Accuracy
Resolution |
500 ppm to 6.000 ppm
±10 % of mv (additional error)
1 ppm |
|
NOlow measurement
|
Meas. range
Accuracy
Resolution |
150 ppm to 600 ppm
±10 % of mv (additional error)
0.1 ppm |
|
NO2 measurement
|
Meas. range
Accuracy
Resolution |
200 ppm to 1.000 ppm
±10 % of mv (additional error)
0.1 ppm |
|
SO2 measurement
|
Meas. range
Accuracy
Resolution
|
500 ppm to 10.000 ppm
±10 % of mv (additional error)
1 ppm |
General technical data
|
Memory |
Maximum
Per folder
Per site
The max. number of logs is determined by the number of folders or sites. |
100 folders
Max. 10 sites
Per site Max. 200 logs |
|
Regulated diaphragm pump |
Pump flow
Hose length
Max. pos. pressure/ flue gas
Max. neg. pressure/ flue gas |
0.6 l/min (regulated)
max. 7.8 m
(corresponds to two probe hose extensions)
+50 mbar
-200 mbar |
User-defined
fuels |
10 user-defined fuels incl. test gas as fuel |
|
Weight |
960 g |
|
Dimensions |
283 x 103 x 65 mm |
|
Storage temp. |
-20 to +50 °C |
|
Oper. temp. |
-5 to+50 °C |
|
Display |
Graphic display 160 x 240 pixels |
|
Power supply |
Battery block 3.7 V / 2.4 Ah
Mains unit 6.3 V / 2 A |
|
Material/Housing |
TPE PC |
|
Protection class |
IP40 |
|
Warranty |
Analyzer:
Rech. batt.:
Sensors:
CO, NO, COlow, NOlow, NO2, SO2
O2 |
2 years (excluding working parts, e.g. sensors, sensor replacement filter)
1 year
1 year
1,5 years |
