LEI0015-LINO P5 SWITZERLAND-MADE DIGITAL ALIGNMENT TOOL

Category: Distance meters

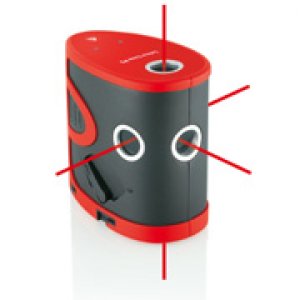

The Leica Lino P5 projects five laser beams, which are exactly at right angles to one another. This greatly simplifies setting out tasks and makes your interior fitting-out more precise and efficient.
  • Modern, ergonomic housing
  • Self-levelling
  • Power Range Technology™
  • Practical multifunction adapter
  • Very easy to use

Delivery package:
Art. No. 777 068


  • Target plate
  • Magnetic multifunction adapter
  • Alkaline batteries (type AA, 3 × 1.5V)
  • Pouch




Technical specifications:
Range up to 15 m depending on lighting conditions
Levelling accuracy @ 5 m ± 1.5 mm
Self-levelling range 4° ± 0.5°
Accuracy of  plumb point @ 5 m ± 1.5 mm
Number of  laser points 5
Beam direction up, down, forward, right, left
Laser type 635 nm, laser class II
Batteries type AA 3 × 1.5 V
Protection class splash water / dust proof IP54
Operating  temperature –10 °C to 40 °C
Storage temperature –25 °C to 70 °C
Dimensions (H × D × W) 99.1 × 108.1 × 59.3 mm
Weight without  batteries 320 g
Tripod thread ¼”
