LEI0017-LINO L360 SWITZERLAND-MADE 360 DEGREES HORIZONTAL VISIBLE LINE

Category: Distance meters

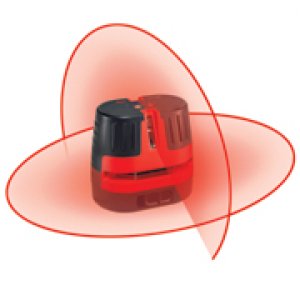

NEW: The Leica Lino L360 projects laser lines quickly, accurately and further – increasing the working range to 360°. The proven Power Range Technology™ ensures outstanding visibility of the lines. This combination makes the Lino L360 to a valuable partner at any construction site and allows perfect leveling and alignment.
  • 360° horizontal line close to the floor level
  • 180° vertical line
  • Well-dampened pendulum-based self-leveling
  • 1.5mm @ 5m horizontal accuracy
  • Rechargeable battery pack for extended operating time
  • Dust-proof and jet water protected – IP65
Delivery package:
Art.No. 790509


  • Leica Lino L360 Line Laser
  • Target plate red
  • Mini tripod adapter
  • International charger with 4 plugs
Technical specifications:
Range up to 15 m*
Range with detector > 15 m
Leveling accuracy @ 5 m ± 1.5 mm
Self-leveling range 3.5° ± 0.5°
Accuracy of horizontal line @ 5 m ± 1.5 mm
Vertical accuracy @ 3 m line length ± 0.75 mm
Beam divergence 360° (horizontal)
Beam direction vertical, horizontal
Laser type 635 nm, laser class II
Batteries rechargeable battery pack
Protection class IP65 dust-proof and jet water protected
Operating temperature - 10°C to 40°C
Storage temperature -25°C to 70°C
Dimensions (HxDxW) 131.7 x 145 x 96.2 mm
Weight with batteries 1009 g
Tripod thread ¼”

* Depending on lighting conditions
