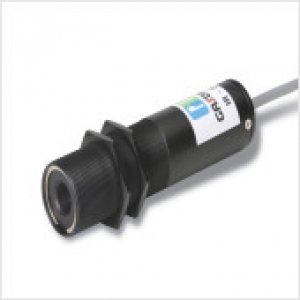

IR-20 non-contact infrared thermometer measures the infrared wavelength emitted from the target spot and converts it to standard current signal output (4~20mA). It can measure from 0 ℃ to maximum 400℃ in the distance of 10:1 D:S (Distance to Spot). Emissivity is 0.95 (fixed).
[ Applications ]
Plastics, Fluids, Rubber, Coated components, Asphalt, Wood, Paper, Ceramics, Textiles, Glass, Food etc.
[ Specification ]
| |
| Segment |
Specification |
| Measurement Range |
0~400℃ |
| Device |
Thermopile |
| Accuracy |
±1% / full scale |
| Repeatability |
±1% of reading |
| Distance : Spot |
10:1 |
| Optical spectrum wave |
8~14㎛ |
| Responsive Time |
0.5sec or below |
| Emissivity |
0.95 (fixed) |
| Analog Output |
4~20mA, 1~5V(option) |
| Power |
DC 12~24V(Max 50mA) |
| Ambient temperature(no water cooling) |
0~70℃ |
| Temperature Resolution |
0.1℃ |
| Warm up Period |
1 to 2 minutes |
| Operating Relative Humidity |
5~90% |
| Operating Ambient Temperature |
-30~85℃ |
| Waterproof |
IP65,NEMA 4 |
| Dimensions |
Ø36 ×110.5(L) |
| Signal Cable |
4 wire shield type |
| Housing material |
Aluminum Alloy |
| Weight |
160g |
| Cable length |
3m(standard), other(option) |
| |
|
| |
| [ Code Number IR-20-□-□-□ ] |
| |
| |
| Model |
Description |
| IR-20 |
|
| Code A |
Temperature Range |
| 1 |
0~200℃ |
| 2 |
0~400℃ |
| Z |
Other |
| Code B |
Output |
| N |
DC 4~20mA |
| V |
Voltage Output(1~5V) |
| Z |
Other |
| Code C |
Cable Length |
| 1 |
3M |
| Z |
Other |
| |
|
| |
| [Optical field of view (D:S 10:1) ] |
| |
 |
