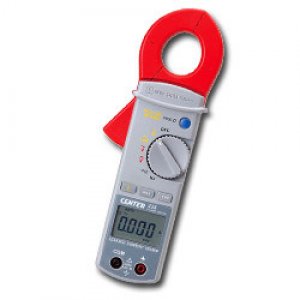

The leakage clamp meter CENTER 235 has a very good resolution of 10μA. It is very useful for power system check and installation. With the measurement range up to 100A, it is also proper for indoor installation as a normal clamp meter.
Features:
-
10μA resolution
-
Auto ranging
-
Auto power off
-
Max Hold function
-
Data Hold function
-
Auto Zero function
-
600V CATIII
 |
 |
 |
Specifications:
AC Current
| Range | Resolution | Accuracy | |
|
50Hz~60Hz
|
60Hz~1KHz
|
||
| 10A | 1mA | 1.2%+5 | 2.5%+5 |
| 80A | 10mA | ||
| 80A~100A | 5%+5 | ||
AC mA Current
| Range | Resolution | Accuracy | |
|
50Hz~60Hz
|
60Hz~1KHz
|
||
| 60mA | 10μA | 1.2%+5 | 2.5%+5 |
| 600mA | 100μA | ||
AC Voltage
| Range | Resolution |
Accuracy
50Hz~1KHz
|
| 600V | 0.1V | 1.5%+5 |
DC Voltage
| Range | Resolution | Accuracy |
| 600V | 0.1V | 1%+2 |
Resistance
|
Range
|
Resolution
|
Accuracy
|
|
1KΩ
|
0.1Ω
|
1%+3
|
Continuity
|
Range
|
Active Region
|
 |
< 35Ω
|
Frequency
|
Function
|
Range
|
Resolution
|
Accuracy
|
|
Hz (A)
|
0~100Hz
|
0.1Hz | 0.5%+2 |
|
100~1KHz
|
1Hz | ||
|
Hz (V)
|
0~100Hz
|
0.1Hz | |
|
100~1KHz
|
1Hz | ||
Jaw opening size: 28mm
Battery: 1.5V AAA x 2
Dimensions: 218 x 64 x 30mm
Weight: 270g
*The specifications are subjects to change without prior notice.
Standard Accessories:Battery, test lead, instruction manual, carrying case |
