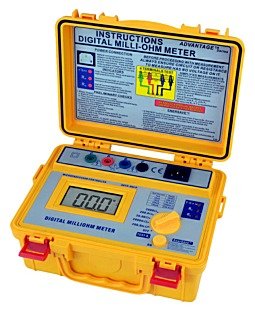

Sew 4136 mO

Category: Milliohm Meters
FEATURES
● Microprocessor-controlled.
● Four terminal measurement.
● Measures down to 100μΩ.
● 5 Ranges from 200.0mΩ to 2000Ω.
● Maximum resolution of 100μΩ.
● Three test currents with over-temperature protection.
● Protection against inadvertent connection to over voltage.
● Large LCD.
● Potential lead resistance and current lead resistance checks.
● "Full-featured” EnerSave inside.
● EnerSave Auto hold.
● EnerSave Auto off.
● Lightweight, robust & compact.
● Indicators show if reading may be invalid (RP, RC, and
    temperature).
● "O-Ring” sealed case.

  SPECIFICATIONS


Measuring ranges 0-200.0mΩ in steps of 100μΩ
0-2000mΩ in steps of 1mΩ
0-20.00Ω in steps of 10mΩ
0-200.0Ω in steps of 100mΩ
0-2000Ω in steps of 1Ω
Accuracy ±0.5% of reading ±2 digits over the
operating temperature range, -15ºC to +55ºC,
with the supplied test leads
Test current 1mA=>2000Ω range
10mA=>200 / 20Ω ranges
100mA=>2000m / 200mΩ ranges
Test current
accuracy		 ±0.1%
Protection fuses Mains = 0.5A, HBC, 5 × 20mm, DIN
Current = 0.5A, HBC, 5 × 20mm, DIN
Voltage = 0.5A, HBC, 5 × 20mm, DIN
Maximum output
voltage (C1~C2)		 20V
Dimensions 250(L) × 190(W) × 110(D)mm
Weight 1530g
Safety standard EN 61010-1 CAT IV 20V
EN 61326-1
