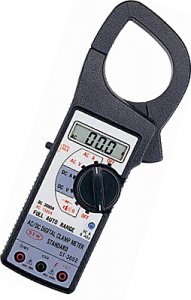

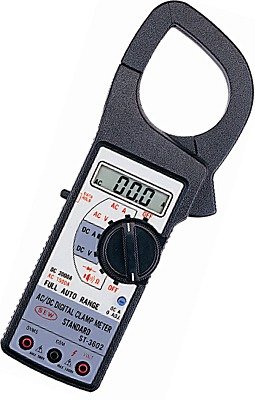

Sew ST-3602

Category: AC/DC Clamp Meters
FEATURES
● 3½ digit LCD with maximum reading of 1999.
● Over range indication : "1" is displayed on highest digit.
● Low battery indication: "B" sign appears on the display.
● Response time: approx. 1 second.
● Data hold: for all ranges

  SPECIFICATIONS


AC A 200 / 1500A
±(2.0%rdg+4dgt)
(40Hz-1kHz)
AC V 200 / 750V
±(1.5%rdg+2dgt)
(40Hz-1kHz)
DC A 200 / 1500A
±(2%rdg+4dgt)
DC V 200 / 1000V
±(1%rdg+2dgt)
  Ω 200 / 1500Ω
±(1.5%rdg+2dgt)
Diode check 0-1500mV
±(1.5%rdg+2dgt)
Buzzer Resistance is less than 100Ω
Conductor size 55mm Max.
Operating
temperature		 0ºC ~ 40ºC
Humidity 85% R.H.
Current
consumption		 Approx. 10mA
Dimensions 245(L) × 70(W) × 41.7(D)mm
Weight (battery Included) Approx. 480g
Power source 9V(6F22) × 1
