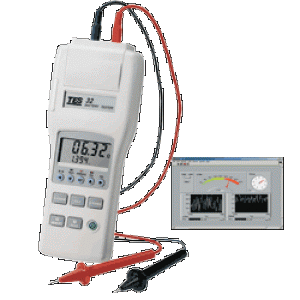

Storage Battery Systems Battery Capacity Testers,
Check battery condition in seconds, with the battery in service!
| Battery Types Tested | Compact storage batteries, Alkali and lead-acid batteries.. |
| Battery Capacity | 0 to 500AH |
| Resistance | Ranges : 40mΩ, 400mΩ, 4Ω, 40Ω Resolution : 10μΩ, 100μΩ, 1mΩ, 10mΩ Accuracy : ±(1%reading + 8digits) on all ranges. |
| Measurement | Current : 25mA, 2.5mA, 250μA,25μA Frequency : 1KHz Accuracy : ±10% |
| Voltage | Measurement : 4V, 40V Resolution : 1mV, 10mV Accuracy : ±(0.1%rdg ±6digits) |
| Open Circuit Voltage | 3.5Vpp max |
| Data Memory | 500 data sets |
| Continuous Data Memory | 9600 data sets (only use PC download) |
| Comparator |
Setting : Resistance upper and lower limits and voltage |
| Operating Environment | 0℃ to 50℃ (32℉ to 122℉), 80%RH or less, non-condensing. |
| Maximum Input Voltage | 50VDC |
| Power Supply or AC Adapter | Six size AAA 1.5V |
| Battery Life | 7 hours |
| Weight | Approx. 500g including batteries |
| Dimensions | Approx. 250(L)×100(W)×45(H)mm |
| Accessories | Instruction manual, Batteries, Test probe, Software, RS232 cable. |
| Optional Accessories | AC adaptor (Isolated output 9VDC) |
