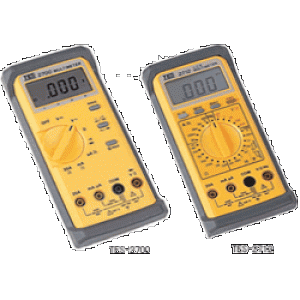

TES-2700/2712 LCR Multimeter

Category: Multimeter

TES-2700
Voltage (AC/DC)
Range 320m/3.2/32/600VDC
3.2/32/320/600VAC
Accuracy DC - 0.5% rdg + 2 dgts
AC - 1.2% rdg + 4 dgts
(40-400Hz)
Input Impedance 10MΩ (min)
Resolution 100μV(DC)/1mV(AC)
Current (AC/DC)
Range 320μ/3.2m/32m/320m/20A
Accuracy DC - 1% rdg + 2 dgts
AC - 1.5% rdg + 5 dgts
(40-400Hz)
Resolution 0.1μA
Resistance
Range 320/3.2K/32K/320K/3.2M/30MΩ
Accuracy 0.8% rdg + 2 dgts
Resolution 0.1Ω
Diode Test
Resolution 1mV
Accuracy 1% rdg + 2 dgts
Max. Test Current 0.8mA
Max. Open Circuit Voltage 3.2V
Overload Protection 500Vrms
Continuity Beeper
Operation Resistance Below 20 Ω
Max. Open Circuit Voltage 1.3V
Overload Protection 500Vrms



TES-2712
Voltage (AC/DC)
Range 200m/2/20/200/600V
Resolution 0.1mV
Accuracy DC - 0.5% rdg + 1 dgt
AC - 1% rdg + 5 dgts
Input Impedance 10M W (min)
Current
Range 200 m /2m/20m/200m/20A
Resolution 0.1 m A
Accuracy DC - 1% rdg + 1dgt
AC - 1.2% rdg + 3dgt
(50-500Hz)
Inductance
Range 20m/200m/2/20H
Resolution 10 m H
Accuracy 5% rdg + 10 dgts
Resistance ( W )
Range 200/2K/20K/200K/2M/20M
Accuracy 0.8% rdg + 2 dgts
Resolution 0.1 Ω
Overload Protection 500Vrms
Max. Open Circuit Voltage 3.2V
Max. Allowable Applied Voltage 500Vrms
Diode Test
Resolution 1mV
Accuracy 2% rdg + 2 dgts
Max. Test Current 1.0mA
Max. Open Circuit Voltage 3.2V
Continuity Beeper
Operation Resistance Below 30 Ω
Max. Open Circuit Voltage 3.2V
Diode Test
Range 2000P/200n/2 m F/20 m F Resolution: 1PF
Accuracy 3% rdg + 10 dgts
