TES-Taiwan

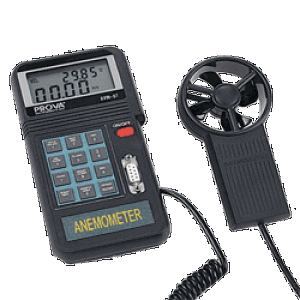

AVM-05/07 Flow Anemometer

Category: Anemometer
Range of Wind Velocity: Auto Range
Units
Range
Resolution
Threshold
Accuracy
m/s
0.0~45.0
0.1
0.3
+/-3%+/-0.1dgts
ft/min
0.0~8800
0.1/1
60
+/-3%+/-10dgts
knots
0.0~88.0
0.1
0.6
+/-3%+/-0.1dgts
km/hr-
0.0~140.0
0.1
1.0
+/-3%+/-0.1dgts
mph
0.0~100.0
0..1
0.7
+/-3%+/-0.1dgts
m/s : meter per second ft/min : feet per minute
knots : nautical miles per hour Km/hr : Kilometers per hour
mph : miles per hour
Range of Area (CMM) : 0.01~9999 m 2 Range of Wind Flow (CMM) : 0.01~9999 x 100
(CFM) : 0.01~9999 ft 2 (CFM) : 0.01~9999 x 100
Unit Conversion Table
Unit
Range
Resolution
Accuracy
℃
0.0~45.0
0.2
+/-1.0 ℃
℃
32.0~113.0
0.36
+/-1.8 ℃
General Specification
Battery Type 9V
Display 2 x 4 Digits Dual Display LCD
Bearing Sapphire jewel bearing
Temperature K-type thermocouple
Operating Temperature Meter: 0 ℃ ~ 50 ℃ ( 32 ℉ ~122 ℃ )
Vane: 0 ℃ ~ 60 ℃ ( 32 ℉ ~140 ℉ )
Operating Humidity Less than80% RH
Storage Temperature ﹣40 ℃ ~ 60 ℃ (﹣40 ℉ ~140 ℉ )
Power Consumption Approx 3mA
Dimension Meter: 3.46" x 6.61" x 1.03"(88 x 168 x 26.2mm)
Vane: 2.60" x 5.22" x 1.15"(66 x 132 x 29.2mm)
Weight 350g / 12.34oz. (Battery included)
Accessories Carrying case x 1
User manual x 1
9VBattery x 1
