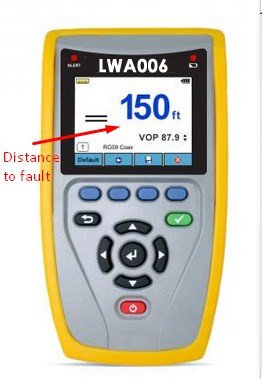

LWA006-KKINSTRUMENTS SSTDR 3-IN-ONE CABLE FAULT FINDER- MADE IN USA
Category: Cable Testers
Digital Multimeter
- DC Volts, 10M Ohm input impedance
- AC Volts, 10M Ohm input impedance
- AC Volts with a lower impedance to reduce ambient noise pickup
- Continuity with audible signal for low resistance
- Ohms measurement
Fault Location
- Quick picture of existing cable faults & condition
- Measures accurate distance to shorts or open faults
- Measures cable length
- Library of common cable type VOP values
- VOP Calibration
Live Event Detection
- Continuous monitoring for intermittent faults
- Detect, locate and characterize cable faults
- Ability to time stamp events
- High quality industrial grade accessories and adapters
- Built-in list of cable types and their VOP values
- Audio indication when a change/fault is detected
- Favorites list for commonly tested cable types
- Capable of accuracy to fault of better than 1%
- Control over powersaving features such as auto-off and backlight dim
- Multilingual (English, French, Spanish)
| Measurement Technology | Spread Spectrum Time Domain Reflectometry U.S. Patents and Patents Pending |
||
| Multi-Meter Section | |||
| Description | Range | Resolution | Accuracy (% + counts) |
| DC Volts | 600V 400.0V 40.00V 4.000V |
1V 0.1V 0.01V 0.001V |
±(0.5% + 2) |
| Auto-V LoZ True-rms |
600V 400.0V 40.00V 4.000V |
1V 0.1V 0.01V 0.001V |
±(2.0% + 3) DC, 45~500 Hz ±(4.0% + 3) DC, 500~1 KHz |
| AC Volts True-rms |
600V 400.0V 40.00V 4.000V |
1V 0.1V 0.01V 0.001V |
±(1.0% + 3) DC, 45~500 Hz ±(2.0% + 3) DC, 500~1 KHz |
| Ohms | 400.0 KΩ 4.000 KΩ 40.00 KΩ 400.0 MΩ 4.000 MΩ |
0.1Ω 0.001 KΩ 0.01 KΩ 0.1 MΩ 0.001 MΩ |
±(0.9% + 2) ±(0.9% + 2) ±(0.9% + 2) ±(0.9% + 2) ±(0.9% + 2) |
| Languages | English, French, and Spanish | ||
| Power | 6 AA alkaline batteries, typical battery current: Off mode - 4.25 uA Multimeter mode: 81mA with backlight, 41mA dim backlight Fault Location: 82mA - one test per minute with backlight Live Event Detection: 115 mA when active with backlight, 75 mA dim backlight |
||
| Battery Life | 6 AA alkaline batteries Standby - life of the battery Operating - 20 to 30 hours, mode dependent Batteries are included |
||
| Maximum Range | 12,000 ft (3,657 m) at .999 VOP Maximum testable cable length varies with VOP and cable type. VOP (%) with 3 digit precision ranging from 20.0% to 99.9% |
||
| Output Connector | Banana Jacks 600V CAT III | ||
| Leader Cable | Cable Assembly, 5 ft. (1.5 m) 600 Volt CAT III, 95 Ohm | ||
| Altitude | 6,500 ft. (2,000 m) operating | ||
| Temperature | Operating: 14 to 122°F (-10 to 50°C); Storage: -4 to +140°F (-20 to 60°C) |
||
| Humidity | 10 to 90% non-condensing | ||
| Enclosure | High-strength PC/ABS plastic with V0 rating with boot | ||
| Size | 1.85”H x 3.6”W x 6.8”L (4.7 x 9.15 x 17.3 cm) | ||
| Weight | With batteries: 1 lb 2 oz (510 g) | ||
| Safety Compliances |
Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 No 61010-1-04, UL 6101B (2003) and IEC/EN 61010-1 2nd Edition for measurement Category III, 600 V, EMC EN61326-1 | ||
| Warranty | 1 Year | ||
