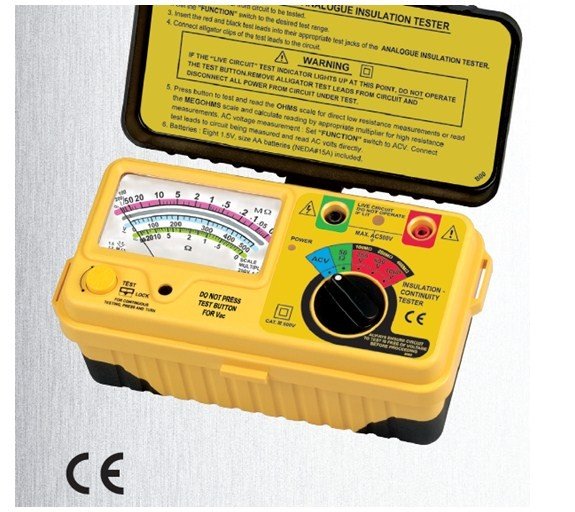

SEW0099-1000V(1KV) Analogue Insulation Tester 250v,500v,1KV.

Category: Insulation (Resistance) testers

Details

FEATURES

● High quality Taut Band movement.
● Battery operated.
● Solid state circuitry.
● Battery check feature.
● Automatic circuit discharge.
● Three insulation test voltages(DC) : 250V, 500V, 1000V
● Continuity test : 50 Ω
● AC voltage measurement : 500V
● Color-coded scale.
● Fuse protected.

SPECIFICATIONS

Insulation Resistance
Test voltage (DC V)	250V / 500V / 1000V
Output voltage on open circuit	Rated test voltage +10%
Measuring ranges	0-100MΩ / 0-200MΩ / 0-400MΩ
Accuracy	±5% of indicated value
Short circuit current	2mA DC
Power consumption	190mA
Continuity
Measuring ranges	0 -50Ω & ∞
Accuracy	± 5% of scale length
Open circuit voltage	4V DC Approx.
Short circuit current	145mA DC Approx.
Power consumption	200mA
AC Voltage
Range	0-500V AC
Accuracy	± 2.5% of full scale
Line frequency range	40 -1k Hz
General
Dimensions (with housing front cover)	175(L) × 85(W) × 75(D)mm
Weight (battery included)	Approx. 600g
Power source	1.5V (AA) × 8
Safety standard	EN 61010-1 CAT III 500V EN 61326-1
