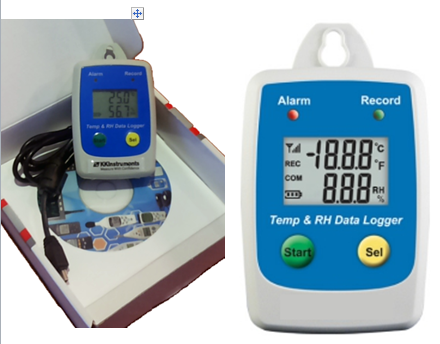

TEN1720-TEMPERATURE/ HUMIDITY(RH) GRAPHICAL DIGITAL LOGGER/RECORDER
Category: Datalogger/Recorders
- Double Recording Mode
Measure and Record Temperature and Relative Humidity(%RH). - High Memory Space for long-term monitoring
Datalogging up to 50,000 records.
- Fast USB downloading speed
- Long-term recording (from 1 week to 1 year)
- Flexible recording interval from 10s to 24hours

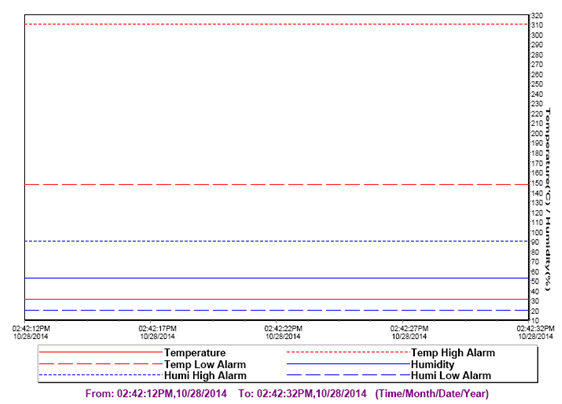

- Powerful Graphical/Microsoft Excel Data Export functions
- Internal LED alarm
- Hook holder included
- Included USB cable/Software worth USD200
- All inner electronics and sensors are made in Germany
- Worldwide-Acceptance Since 2005
- User-friendly Windows PC software included
Easy- to-Use PC software for parameter settings and data analysis.
- Water-Splash Proof with IP 65 Approval
Guaranteed 100 times easier to operate than most other brands in the market
Example: Press ‘Start’ to start recording. Press again to stop.
|
Measurement Range |
-40 to 85℃(-40~185℉),1%-99%RH |
|
Accuracy |
±0.5℃ from -20 to 50℃ ±1.0℃ all other ranges |
|
Resolution |
0.1℃.0.1%RH |
|
Display |
3 digits LCD. |
|
LED status |
red LED of Alarm, greed LED of Record. |
|
Sampling rate |
1 time/3 seconds. |
|
Battery |
One 3.6V ½ AA lithium battery |
|
Battery Life |
1 year |
|
External Power Supply |
5 VDC with 0.5A. |
|
Operating temperature and humidity |
-40 to 85℃(-40~185℉),0-95%, RH, non-condensing. |
|
Instrument Dimensions |
83(L)*60(W)*24(H) mm. |
|
Weight |
About 77g. |
Relative Humidity Sensor
|
Type |
Capacitor |
|
Measurement Range |
1%-99% |
|
Accuracy |
±3.0%RH(20~80%) ±5.0%RH(>80%) |
|
Resolution |
0.1% |
Temperature Sensor
|
Type |
Thermistor |
|
Measurement Range |
-40-185℉(-40-85℃) |
|
Accuracy |
±0.5℃(±1.2℉)from -20-50℃(-4 to 122℉) ±1.0℃(±1.8℉) all other ranges. |
|
Resolution |
0.1℃ |
