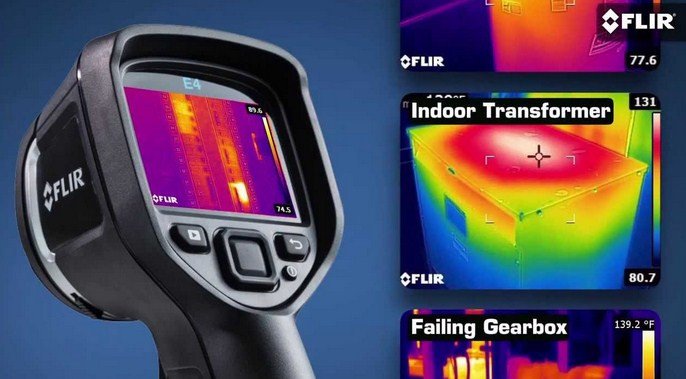

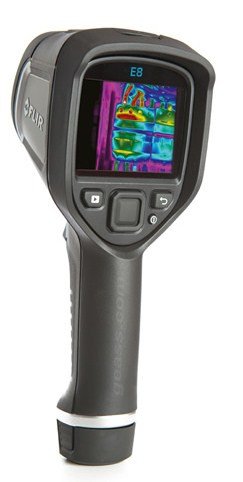

FLIR E4,E5,E6,E8 Thermal Imager

FLIR^® Ex-Series Infrared Camera Specifications

Model Number	FLIR E4	FLIR E5	FLIR E6	FLIR E8

Imaging and Optical Data
IR Resolution	80 × 60	120 × 90	160 × 120	320 × 240
Thermal Image Sample
MSX Resolution	320 × 240
Thermal Sensitivity	<0.15°C	<0.10°C	<0.06°C
Field of View	45° × 34°
Focus	Focus Free
Detector	Uncooled Microbolometer
Screen	3.0 in. 320 × 240 color LCD
Frame Rate	9 Hz
Analysis
Image Modes	IR image, visual image, MSX, thumbnail gallery		IR image, visual image, MSX, picture-in-picture, thumbnail gallery
Multi Spectral Dynamic Imaging (MSX)	IR image with enhanced detail presentation
Picture-in-Picture	N/A		IR area on visual image
Temperature Range	–4° F to 482°F (–20° to 250°C)
Accuracy	±2% or 2°C
Measurement Modes	Spot (center) mode	2 modes: 1 Spot (center); 1 Area Box (Min/Max)	3 modes: 1 Spot (center); 1 Area Box (Min/Max); Isotherm (above/below)
Alarm	N/A	N/A	Blue below or red above set temperature
Emissivity Correction	Variable from 0.1 to 1.0
Set-Up
Color Palettes	Iron, Rainbow, and Gray
Set-up Commands	Local adaptation of units, language, date and time formats
Image Storage
Storage Capacity	Internal memory store at least 500 sets of images
Storage Mode	Simultaneous storage of images in IR, visual and MSX
File Formats	Standard JPEG, 14-bit measurement data included
Other
Battery Type / Op Time	~4 hours
Dimensions / Weight	/ 1.27 lbs (0.575 kg)
Drop	2 meter / 6.6 ft
Warranty	FLIR Warranty: Learn More
