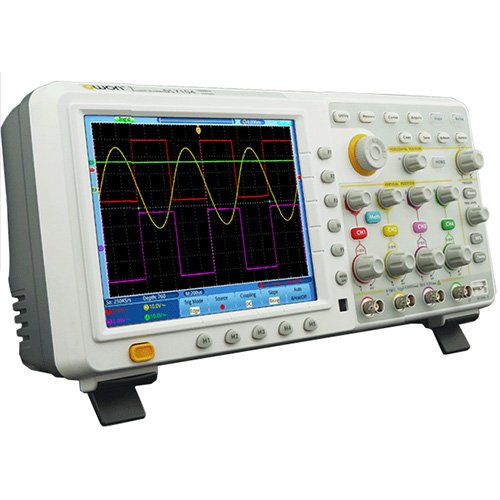

OWO2103-TDS8204V2 200MHZ 2G/S 8" LCD 4 CHANNEL LAN VGA OSCILLOSCOPE 3 YEARS WARRANTY
Category: Oscilloscope/Scopemeters
- Max 200MHz bandwidth, up to 2GS/s realtime sample rate
- 7.6M record length
- 50,000 wfms/s waveform capture rate - waveform zooming (horizontal / vertical), and saving
- FFT points (length, and resolution variable)
- Multi-window extension
- User-friendly voice warning
- 8 inch 800 x 600 pixels high def LCD
- Multi-communication interface : USB, VGA, LAN
- Applications:
- Electronic circuit debugging
- Circuit testing
- Design and manufacture
- Education and training
- Automobile maintenance and testing
-
Specifications Bandwidth 200MHz Channel 4 Sample Rate 2GS/s Waveform Capture Rate 50,000 wfms/s Display 8" touch screen color LCD Input Coupling DC, AC, and GND Input Impedance 1MΩ ± 2%, in parallel with 10pF ± 5pF ; 50Ω ± 1% Probe Attenuation Factor 1X, 10X, 100X, 1000X Max Input Voltage 1MΩ input impedance : 400V (PK - PK) (DC + AC, PK - PK)
50Ω input impedance : 5V (PK - PK) (DC + AC, PK - PK)Channel Isolation 50Hz：100：1
10MHz：40：1Interpolation sin(x)/x Record Length 7.6M Horizontal Scale (s/div) 1ns/div - 100s/div, step by 1 - 2 - 5 Interval (ΔT) Accuracy (full bandwidth) Single : ±(1 interval time + 100ppm x reading + 0.6ns)
Average>16 : ±(1 interval time + 100ppm x reading + 0.4ns)Vertical Resolution (A/D) 8 bits resolution (4 channels simultaneously) Vertical Sensitivity 2mV/div - 10V/div (at input) Analog Bandwidth 100 MHz LF Respond (AC, -3dB) ≥5Hz (at input, AC coupling, -3dB) Rise Time ≤3.5ns DC Accuracy ±3% Trigger Type Edge, Pulse, Video, Slope Trigger Mode Auto, Normal, Single Trigger Level Range ±6 div from the screen center Trigger level Accuracy (typical) ±0.3 div Line / Field Frequency (video) NTSC, PAL, and SECAM standard Automatic Measurement Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot, Rise Time, Fall Time, Delay A→B↑, Delay A→B↓, +Width, -Width, +Duty, -Duty Waveform Math ＋, －, ×, ÷, invert, FFT Waveform Storage 4 reference waveforms Lissajous Figure Bandwidth full Bandwidth Phase Difference ±3 degrees Cursor Measurement ΔV, and Δ T between cursors Communication Port USB host, USB device, VGA, LAN Power Supply 100 - 240 V AC, 50/60Hz, CAT II Dimension (WxHxD) 14.9 x 7.08 x 4.5 Inches (380 x 180 x 115 mm) Weight 3.3 lbs (1.5 kg) Ordering Information Model Description TDS8204 Owon TDS8204 200MHz, 2GS/s, 7.6Mpts, 4 Channel Touch Screen Digital Serial Oscilloscope Included Accessories - 1 - USB Cable
- 4 - Passive Probes: 1.2m, 1:1 (10.1)
- 1 - Power Cord
- 1 - CD Rom
- 1 - Manual
Included
