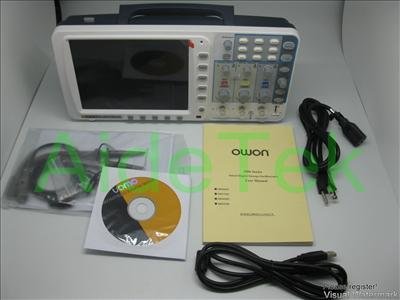

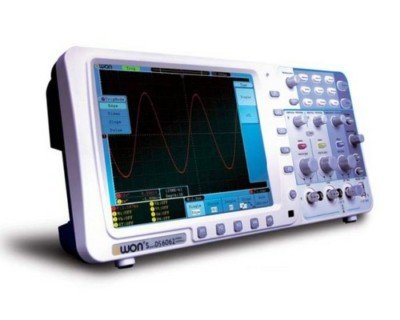

| Specifications |
| Bandwidth |
100MHz |
| Sample rate(Real time) |
1GS/s |
| Horizontal Scale(S/div) |
2ns/div~100s/div, step by 1~2~5 |
| Rise time (at input, typical) |
≤3.5ns |
| Channels |
Dual |
| Display |
8" color LCD, TFT display , 800*600 pixels, 65535 colors |
| Input impedance |
1MΩ±2%in parallel with 15pF±5pF |
| Channels Isolation |
50Hz: 100 : 1, 10MHz: 40 : 1 |
| Max. input voltage |
400V (PK-PK) DC + AC PK-PK |
| DC gain accuracy |
±3% |
| DC accuracy(Average) |
Average≥16:±(3% reading+0.05div) for ΔV |
| Probe attenuation factor |
1X，10X，100X，1000X |
| LF respond(AC, -3dB) |
≥5Hz(at input, AC coupling, -3dB) |
| Record length |
Max.10M points for each channel |
| Sampling rate/relay time accuracy |
±100ppm |
| Interpolation |
(sin x)/x |
| Interval(ΔT) accuracy (full bandwidth) |
Single: ±(1 interval time+100ppm×reading+0.6ns) Average>16:±(1 interval time+100ppm×reading+0.4ns) |
| Input coupling |
DC, AC , Ground |
| Vertical resolution (A/D) |
8 bits resolution (2 Channels simultaneously) |
| Vertical sensitivity |
2mV/div～10V/div(at input) |
| Trigger type |
Edge, Pulse, Video, Slope, Alternate |
| Trigger mode |
Auto, Normal, Single |
| Trigger level |
±6 divisions from screen center |
| Acquisition modes |
Sample, Peak Detect and Average |
| Line/field frequency(Video) |
Support standard NTSCPAL and SECAM broadcast systems |
| Cursor measurement |
ΔV and ΔT between cursors |
| Waveform Math |
＋, －, ×, ÷, FFT |
| Waveform storage |
15 waveforms |
| Communication interface |

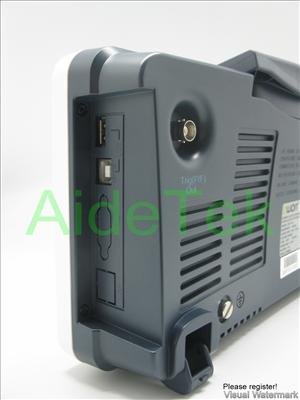

USB2.0, USB flash disk storage, LAN, Pass/Fail |
| Cymometer |
Available |
| Power supply |
100V-240V AC, 50/60Hz, CATII |
| Power consumption |
<18W |
| Fuse |
1A, T class, 250V |
