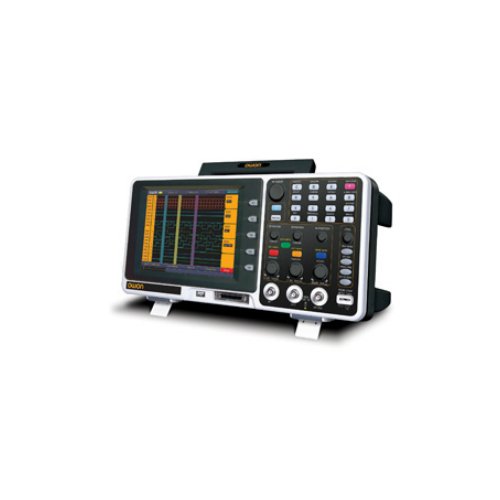

OWO4101-MSO7062TDV2 60 MHZ, 2+1 CH, 2 GS/S MIXED SIGNAL DIGITAL STORAGE OSCILLOSCOPE WITH LOGIC ANALYZER

Category: Oscilloscope/Scopemeters
  • 2 in 1 ( DSO+LA )
  • 8" inch LCD color display
  • Support USB for data transmission to PC
  • USB Flash Disk Storage
  • 20 Automatic Measurements
  • Digital Storage Oscilloscope
    • 60 MHz bandwidth
    • Max up to 2 GS/s sample rate
    • Auto-scale
    • FFT
  • Logic Analyzer
    • 100MHz bandwidth
    • Max up to 1 GS/s sample rate
    • 16 input channels
      Applications
      • Design and Debug
      • Circuit function test
      • Identified signals logic information
      • Education & Training
      • Mixed signal circuit test
      Specifications
      Bandwidth 60 MHz
      Sample rate(Real time) 1 GS/s (500 MS/s for dual channels)
      Horizontal Scale(S/div) 2ns/div-100s/div step by 1-2-5
      Rise time ≤3.5ns
      Display 8.0'' color LCD, TFT Screen, 640x480 pixels, 65535 colors
      DC accuracy(Average) Average>16:±(3%reading+0.05div) for △V
      Vertical Sensitivity 2mV/div -10V/div
      DC Gain Accuracy ±3%
      Vertical resolution (A/D) 8 bits (2 channels simultaneously)
      Channels Dual channels + external trigger
      Interpolation (sin x)/x
      Max. Input Voltage 400V ( DC + AC PK-PK )
      Probe attenuation factor 1X，10X，100X，1000X
      Trigger Mode Edge, Video, Alternate, Pulse, Slope
      Acquisition mode Normal, Peak Detect, Average
      Record length Max.2M points
      Waveform storage 4 waveforms
      Automatic Measurement Vpp,Vavg,RMS,Frequency,Period,Vmax,Vmin,Vtop,Vbase,Width,Overshoot ,Preshoot , Risetime, Falltime, +Width, -Width, +Duty, -Duty, Delay A→B  ,  Delay A→B
      Waveform math ＋,  －, ×, ÷,FFT
      Power supply 100-240V ACRMS,50Hz/60Hz,CATⅡ
      Lissajou’s figure Bandwidth 100MHz
      Phase difference ±3 degrees
      Communication interface USB, Support USB Flash Disk Storage
      Fuse 1A, T grade, 250V
      Cymometer Available
      Power Supply 110V-240V ACRMS, 50/60Hz, CAT II
      Logic Analyzer Characteristics
      Sample rate (real time) 20S/s～1 GS/s
      Bandwidth 100 MHz
      Channels 16
      Record length Max 4M/channel
      Input impedance 660KΩ±5% // 15±5pF
      Trigger mode Edge trigger, Bus trigger, State trigger, Data alignment trigger, Data width trigger,
      Distributed queue trigger
      Trigger position setting Pre-trigger, mid-trigger, re-trigger
      Threshold Voltage ±6V (4 settings)
      Input Signal Range ±30V
      Data search Available
      Data System Binary system, Decimal system, Hex
      Digital filter 0,1,2 optional
      Setting storage 10 settings
      Ordering Information
      Model Description
      MSO7062TD Owon MSO7062TD 60 MHz, 2+1 Ch, 2GS/s Mixed Signal Digital Storage Oscilloscope with Logic Analyzer
      Included Accessories

      • 1 - Probe
      • 1 - Power cord
      • 1 - Logic analyzer module
      • 1 - User's Manual
      • 1 - USB
      • 1 - CD-Rom
      • 1 - Probe adjust
